Mitsubishi >> Galant >> HH >> 2.0 Litre 4 Cyl 4G63 SOHC 8v >> SE HH2P41 06/1990 - 11/1992 4 Door Sedan >> Nason Piston & ring set

Nason Piston & ring set Fits Mitsubishi Galant HH SE HH2P41 Sedan [06/1990 to 11/1992] (2.0L 4G63 4 Cyl SOHC MPFI)

Part
Nason logo

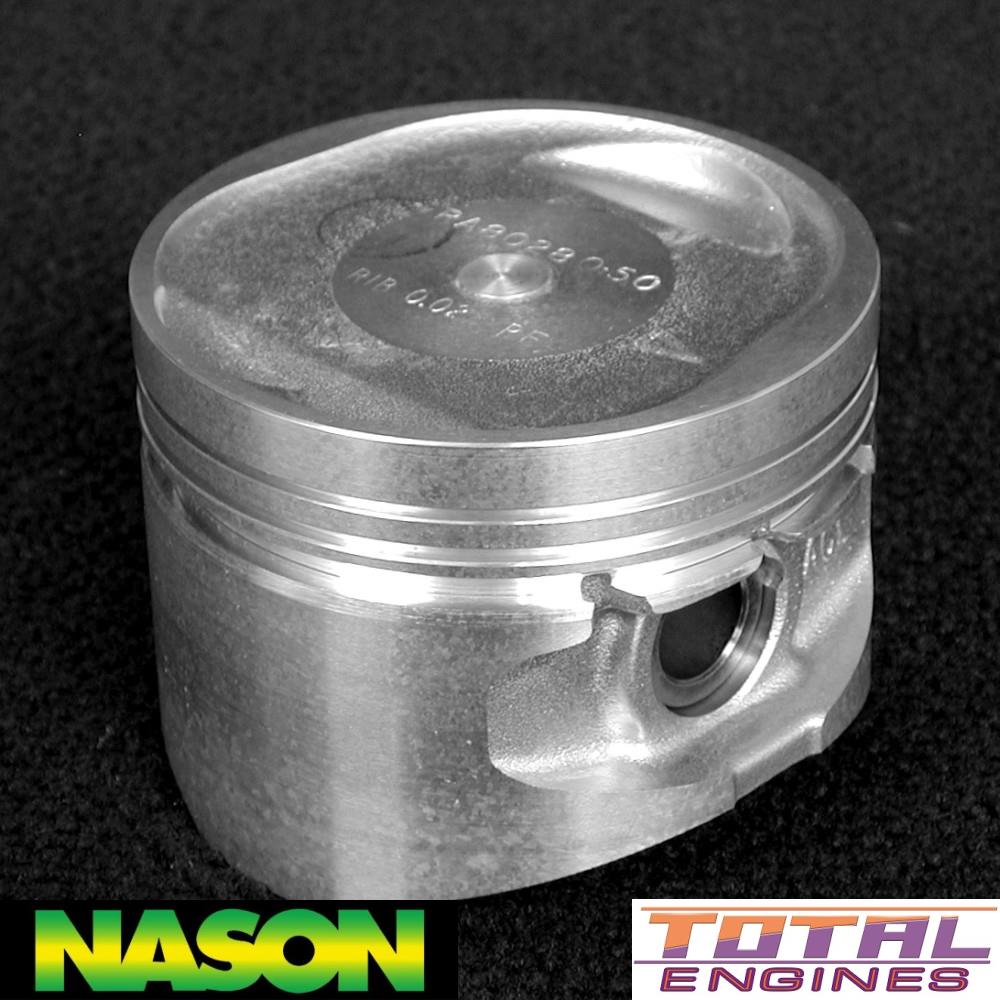

Nason Piston & ring set

Fitment Information:

Inc Rings - Nason, STD Size Dish Top 21mm Pin, can Use 4P1030

$142.76

Specifications
Bowl Volume: 12.3cc
Comp HT: 35.1mm
Combustion Chamber Dia: 12.3mm
Combustion Chamber Depth: -2.5mm
Total Length: 64.8mm
Locking Device: Press Fit
Pin Dia: 21.0mm
Top Ring: 1.5mm
2nd Ring: 1.5mm
Oil Ring: 4.0mm
Recommended Piston To Bore Clearance: 0.066mm / 0.0026in
Measuring Point Dim From Bottom Skirt: 17.00mm / 0.6693in
Size: Dish Top 21mm Pin

Tick This part will fit the following Vehicles:

Mitsubishi Galant HH (2.0 Litre 4 Cyl 4G63 SOHC 8v):
  • SE HH1P41 FWD Sedan 4 Door [06/1990 to 11/1992] 77KW With Manual Transmission
  • SE HH1P44 FWD Hatchback 4 Door [06/1990 to 11/1992] 77KW With Manual Transmission
  • SE HH2P41 FWD Sedan 4 Door [06/1990 to 11/1992] 77KW With Auto Transmission
  • SE HH2P44 FWD Hatchback 4 Door [06/1990 to 11/1992] 77KW With Auto Transmission

Description

Inc Rings - Nason, STD Size
