Mitsubishi >> L200 >> MN >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> 01/2006 - 12/2009 4 Door >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi L200 MN [01/2006 to 12/2009] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

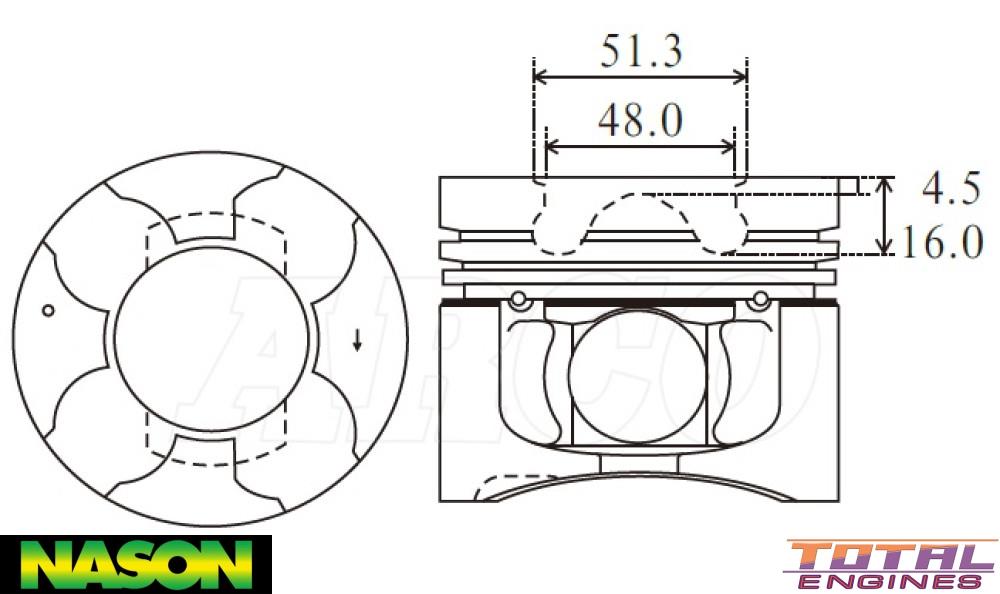

Nason Piston & pin set

Fitment Information:

Pistons only - Suits Engines With 48mm Combustion Bowl

$740.03

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: STD
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm, -4.50mm -16.00mm
Combustion Bowl OD: 48.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 3.00mm
Ring Set: 33454-STD X 4
Size: Suits Engines With 48mm Combustion Bowl

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi L200 KH (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • KH3L22 RWD Utility 2 Door [01/1992 to 12/1994] 53KW With Manual Transmission
  • KH7#22 4WD Cab Chassis 2 Door [01/1992 to 12/1993] 53KW With Manual Transmission
  • KH7#47 4WD Utility 4 Door [01/1992 to 12/1994] 53KW With Manual Transmission
Mitsubishi L200 KJ (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • KJ7#22 4WD Utility 2 Door [01/1992 to 12/1998] 62KW With Manual Transmission
  • KJ7#47 4WD Utility 4 Door [01/1992 to 12/1998] 62KW With Manual Transmission
Mitsubishi L200 KM (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • KM7#47 4WD Utility 4 Door [01/1997 to 12/1998] 64KW With Manual Transmission
  • KM7J22 4WD Utility 2 Door [01/1997 to 12/1998] 64KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mitsubishi L200 MN (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • 4WD 4 Door [01/2006 to 12/2009] 131KW With Auto Transmission

Description

With 48mm Combustion Bowl 131KW- See Notes For Piston Position

Alfin, Oil Gallery Cooling & Anodized Head

One Line On The Piston Pin Boss = Cylinders 1 and 3

Two Lines On The Piston Pin Boss = Cylinders 2 and 4
