Mitsubishi >> L300 >> SC >> 1.8 Litre 4 Cyl 4G62 SOHC 8v >> Express SC6H35 10/1983 - 08/1984 3 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi L300 SC Express SC6H35 Wagon [10/1983 to 08/1984] (1.8L 4G62 4 Cyl SOHC CARB)

Part
Nason logo

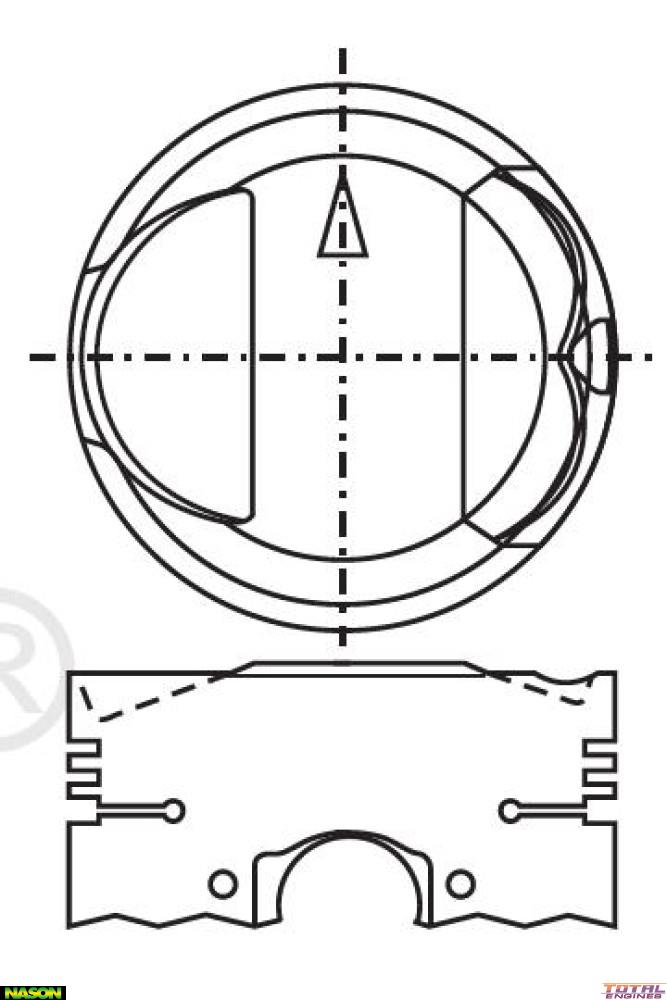

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C6172 or 6172
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 21.00mm x 72.00mm
Comp Height: 35.00mm + 1.50mm
Length: 73.60mm
Piston Type: Cast
Head Type: Dome Top 3 Valve Reliefs
Std Bore Size: 73.60mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Mitsubishi L300 SC (1.8 Litre 4 Cyl 4G62 SOHC 8v):
  • Express SC5Z35 4WD Wagon 3 Door [10/1983 to 08/1984] 60KW With Manual Transmission
  • Express SC6H35 RWD Wagon 3 Door [10/1983 to 08/1984] 60KW With Auto Transmission
  • Starwagon SC5P36 RWD Wagon 3 Door [10/1983 to 08/1984] 60KW With Manual Transmission
  • Starwagon SC6P36 RWD Wagon 3 Door [10/1983 to 08/1984] 60KW With Auto Transmission

Description

Nason, STD Size
