Mitsubishi >> Lancer >> CH >> 2.4 Litre 4 Cyl 4G69 SOHC 16v >> LS, ES, VR-X CS7A 08/2005 - 09/2007 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Lancer CH LS, ES, VR-X CS7A Sedan [08/2005 to 09/2007] (2.4L 4G69 4 Cyl SOHC MPFI)

Part
Nason logo

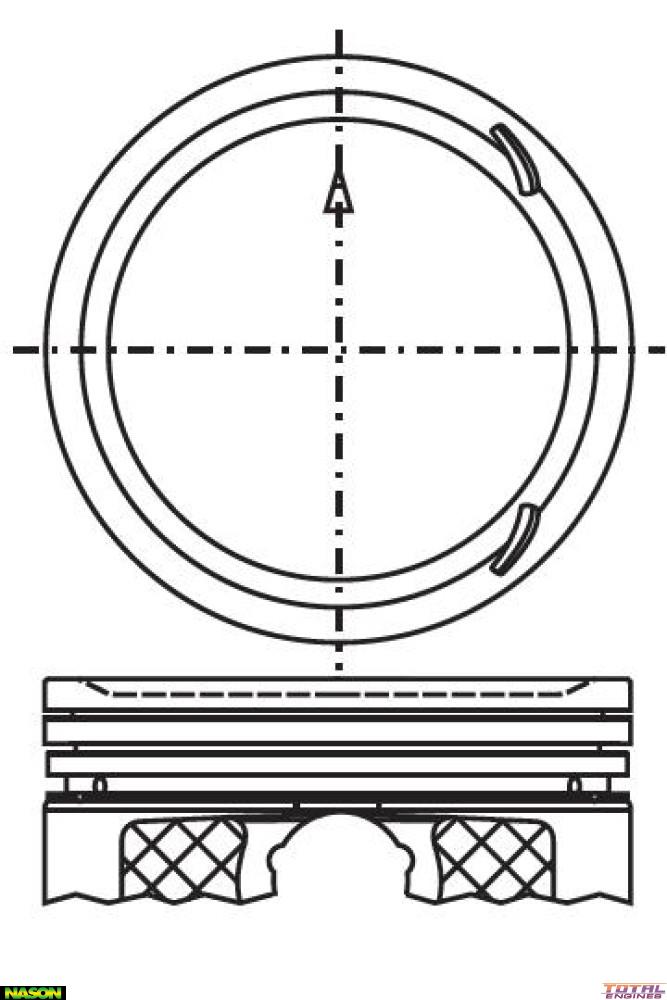

Nason Piston & pin set

Fitment Information:

Nason, 0.50mm Oversize

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 87.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 59.00mm
Comp Height: 28.00mm - 1.90mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5148
Size: 0.50mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Airtrek (No Series) (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • CU5W AWD Wagon 4 Door [03/2003 to 09/2006] 118KW With Auto Transmission
Mitsubishi Grandis BA (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • NA4W FWD Wagon 4 Door [01/2004 to 05/2010] 121KW With Auto Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Grandis BA (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • NA4W FWD Wagon 4 Door [01/2004 to 05/2010] 121KW With Auto Transmission
Mitsubishi Lancer CH (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • ES, VR-X CS7W FWD Wagon 4 Door [08/2005 to 09/2007] 115KW With Manual Transmission
  • ES, VR-X CS7W FWD Wagon 4 Door [08/2005 to 09/2007] 115KW With Auto Transmission
  • LS, ES, VR-X CS7A FWD Sedan 4 Door [08/2005 to 09/2007] 115KW With Manual Transmission
  • LS, ES, VR-X CS7A FWD Sedan 4 Door [08/2005 to 09/2007] 115KW With Auto Transmission
Mitsubishi Outlander ZF (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • LS, Xls, VR, VRX CU5W 4WD SUV 4 Door [06/2004 to 09/2006] 120KW With Auto Transmission

Description

Nason, 0.50mm Oversize
