Mitsubishi >> Lancer >> CH >> 2.4 Litre 4 Cyl 4G69 SOHC 16v >> LS, ES, VR-X CS7A 08/2005 - 09/2007 4 Door Sedan >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Lancer CH LS, ES, VR-X CS7A Sedan [08/2005 to 09/2007] (2.4L 4G69 4 Cyl SOHC MPFI)

Part
Nason logo

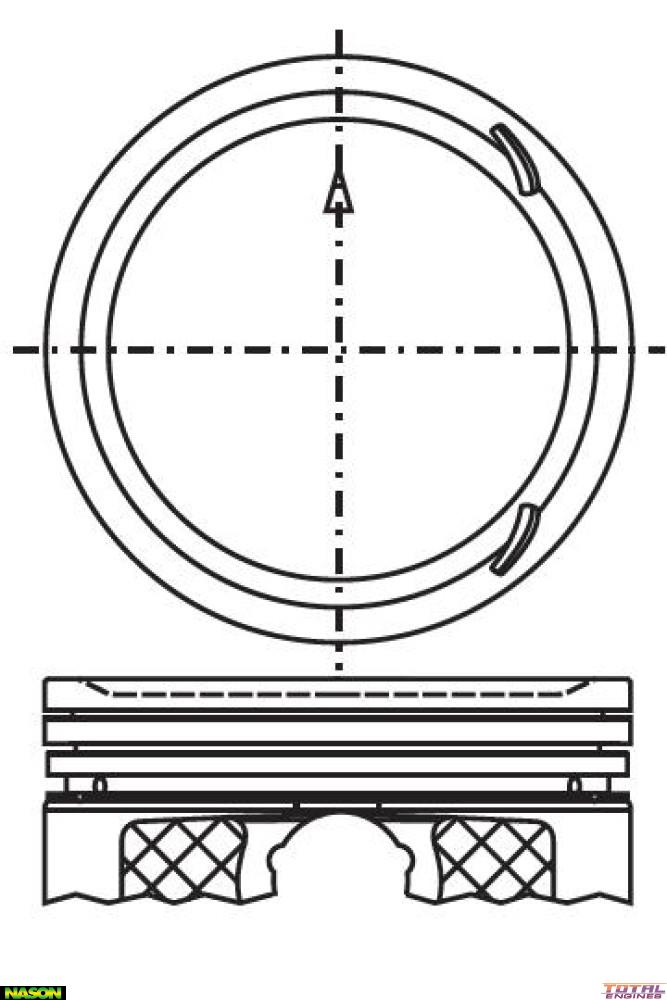

Nason Piston & Pin Set

$296.01

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 87.00mm
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 59.00mm
Comp Height: 28.00mm - 1.90mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.20mm
Oil Ring Width: 2.00mm
Ring Set: 2C5148

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Airtrek (No Series) (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • CU5W AWD Wagon 4 Door [03/2003 to 09/2006] 118KW With Auto Transmission
Mitsubishi Grandis BA (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • NA4W FWD Wagon 4 Door [01/2004 to 05/2010] 121KW With Auto Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Grandis BA (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • NA4W FWD Wagon 4 Door [01/2004 to 05/2010] 121KW With Auto Transmission
Mitsubishi Lancer CH (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • ES, VR-X CS7W FWD Wagon 4 Door [08/2005 to 09/2007] 115KW With Manual Transmission
  • ES, VR-X CS7W FWD Wagon 4 Door [08/2005 to 09/2007] 115KW With Auto Transmission
  • LS, ES, VR-X CS7A FWD Sedan 4 Door [08/2005 to 09/2007] 115KW With Manual Transmission
  • LS, ES, VR-X CS7A FWD Sedan 4 Door [08/2005 to 09/2007] 115KW With Auto Transmission
Mitsubishi Outlander ZF (2.4 Litre 4 Cyl 4G69 SOHC 16v):
  • LS, Xls, VR, VRX CU5W 4WD SUV 4 Door [06/2004 to 09/2006] 120KW With Auto Transmission

Description

Nason Piston & Pin Set STD Size - Enhance Your Engine's Performance!

Brand: Nason

Category: Cylinder Block

Unlock the full potential of your engine with the Nason Piston & Pin Set in standard size—your ultimate solution for improved performance and reliability. Engineered for precision and durability, this piston set is a must-have for your Mitsubishi Outlander ZF 2.4L (produced from June 2004 to September 2006).

Product Features:

  • Complete Set: This package includes 4 high-quality pistons and pins, perfectly designed to meet the demanding needs of your engine.
  • Optimal Specifications: With a standard bore size of 87.00mm and a head type featuring a dish top with 2 valve reliefs, these pistons are built for performance.
  • Superior Engineering: Crafted from robust cast material, each piston is built to last, providing endurance and reliability for your vehicle.
  • Efficient Design: The compact length of 59.00mm and a compression height of 28.00mm - 1.90mm ensures an excellent fit and enhanced combustion efficiency.
  • Precision Manufacturing: The pin size of 22.00mm x 62.00mm utilizes a press-fit design, ensuring secure installation and optimum function.
  • Advanced Coating: Features skirt coating for reduced friction and improved performance, leading to better fuel efficiency and engine longevity.
  • Compatibility: Specifically designed for the Mitsubishi Outlander ZF 2.4L model, this piston set will not fit Great Wall or various other Outlander models produced after September 2006.

Warning: Please note that this product is NOT compatible with the following Mitsubishi Outlander models:

  • ZE 2.4L [12/2002 to 05/2004]
  • ZH 2.0L and 2.4L [10/2006 Onwards]
  • ZJ, ZK, ZL 2.0L and 2.4L [10/2006 Onwards]
  • ZM 2.4L and 2.5L [10/2006 Onwards]

Whether you’re replacing worn-out parts or upgrading your engine, the Nason Piston & Pin Set provides everything you need for exceptional performance. Drive with confidence, knowing that your vehicle is equipped with the best.

Get ready to elevate your engine’s performance—order your Nason Piston & Pin Set today!
