Mitsubishi >> Magna >> TP >> 2.6 Litre 4 Cyl 4G54 SOHC 8v >> GLX TP5H41 07/1989 - 06/1991 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Magna TP GLX TP5H41 Sedan [07/1989 to 06/1991] (2.6L 4G54 4 Cyl SOHC CARB)

Part
Nason logo

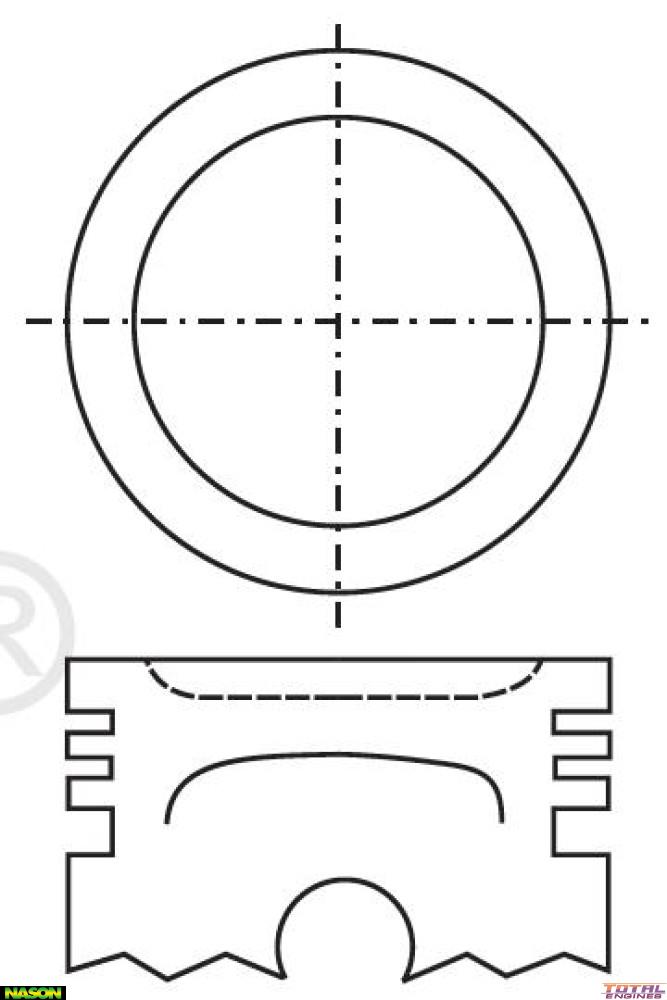

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 91.10mm
Size: 1.50mm / .060"
Head Type: Dish Top
Piston Type: Cast
Length: 77.20mm
Comp Height: 35.20mm - 3.00mm
Pin Size: 22.00mm x 79.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2C5667 or 5667
Size: 1.50mm Oversize

Tick This part will fit the following Vehicles:

Mitsubishi Magna TP (2.6 Litre 4 Cyl 4G54 SOHC 8v):
  • Executive, GLX TP6H41 FWD Sedan 4 Door [07/1989 to 06/1991] 93KW With Auto Transmission
  • Executive, GLX, SE TP2#41 FWD Sedan 4 Door [07/1989 to 06/1991] 83KW With Auto Transmission
  • Executive, GLX, SE TP2#45 FWD Wagon 4 Door [07/1989 to 06/1992] 83KW With Auto Transmission
  • Executive, GLX, SE TP3#45 FWD Wagon 4 Door [07/1989 to 06/1992] 93KW With Manual Transmission
  • GLX TP5H41 FWD Sedan 4 Door [07/1989 to 06/1991] 93KW With Manual Transmission
  • GLX, SE TP1H41 FWD Sedan 4 Door [07/1989 to 06/1991] 83KW With Manual Transmission
  • GLX, SE TP1H45 FWD Wagon 4 Door [07/1989 to 06/1992] 83KW With Manual Transmission
  • TP3#41 FWD Sedan 4 Door [07/1989 to 06/1991] 93KW With Manual Transmission
  • TP4#41 FWD Sedan 4 Door [07/1989 to 06/1991] 93KW With Auto Transmission
  • TP4#45 FWD Wagon 4 Door [07/1989 to 06/1992] 93KW With Auto Transmission

Description

Nason, 1.50mm Oversize
