Mitsubishi >> Pajero >> NK >> 2.8 Litre 4 Cyl 4M40 SOHC 8v >> GL V36 11/1993 - 05/1997 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Pajero NK GL V36 SUV [11/1993 to 05/1997] (2.8L 4M40 4 Cyl SOHC Diesel Inj)

Part
Nason logo

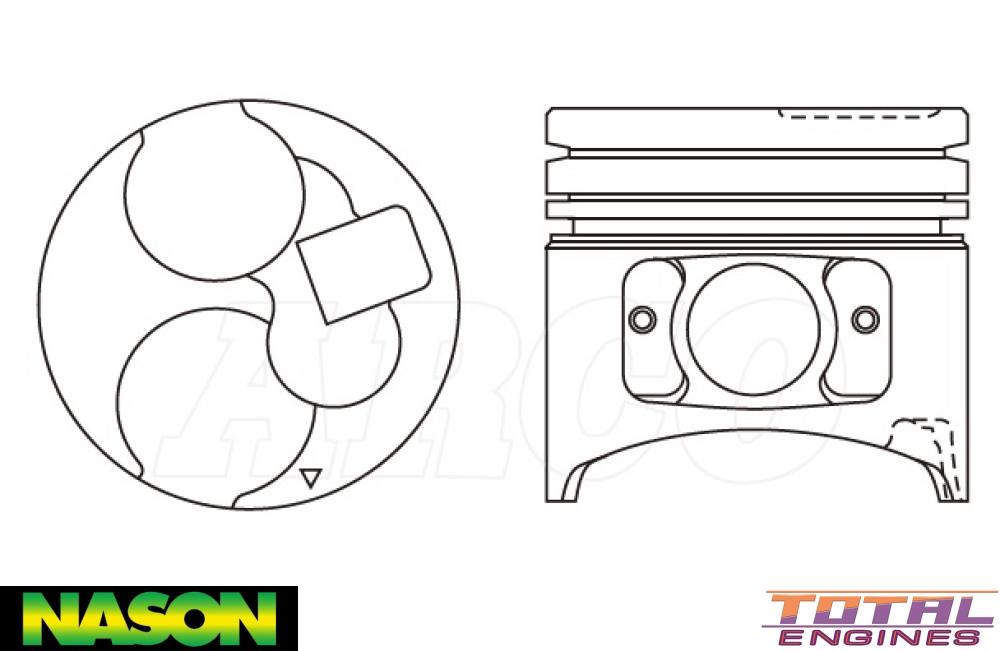

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: STD
Head Type: Flat Top With Clover Leaf and 2 Valve Reliefs
Piston Type: Cast
Length: 91.70mm
Comp Height: 51.70mm, -1.40mm -3.00mm
Pin Size: 30.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.30mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 4.00mm
Ring Set: 33922-STD

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Pajero (No Series) (2.8 Litre 4 Cyl 4M40 SOHC 8v):
  • V26 4WD Hardtop 2 Door [07/1993 to 04/1997] 93KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Pajero NK (2.8 Litre 4 Cyl 4M40 SOHC 8v):
  • GL V36 4WD SUV 4 Door [11/1993 to 05/1997] 71KW With Manual Transmission

Description

Combustion Bowl OD

Alfin & Anodized Head
