Mitsubishi >> Pajero >> NK >> 3.0 Litre V6 6G72 SOHC 12v >> GL, GLS V23 01/1991 - 05/1997 2 Door SUV Full-Size >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Pajero NK GL, GLS V23 SUV Full-Size [01/1991 to 05/1997] (3.0L 6G72 V6 SOHC EFI)

Part
Nason logo

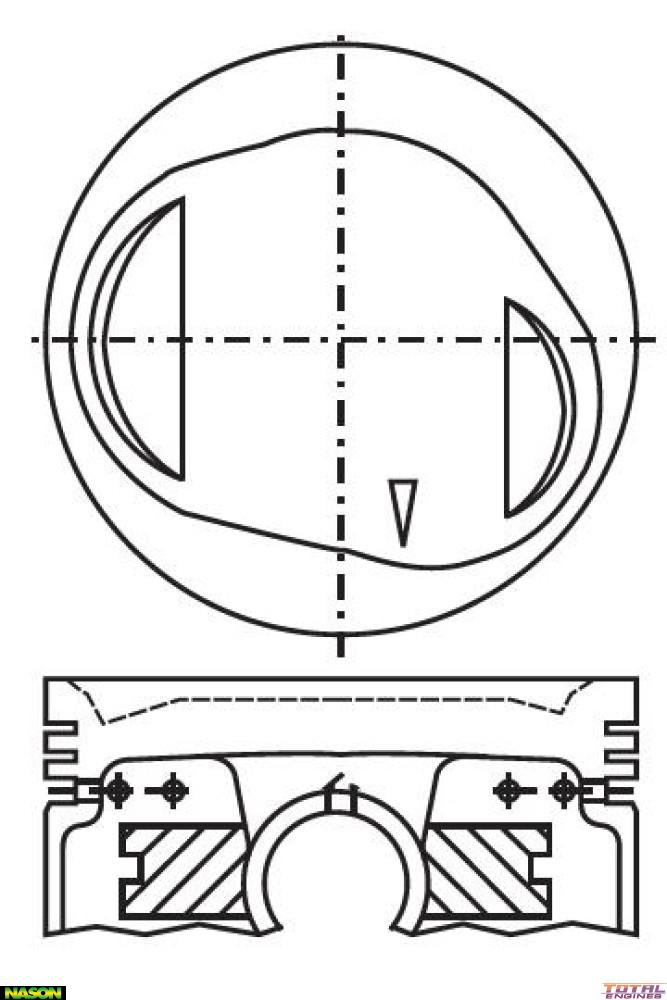

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 91.10mm
Size: 1.50mm / .060"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 68.20mm
Comp Height: 32.20mm - 3.00mm
Pin Size: 22.00mm x 64.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M4453 or 4453
Size: 1.50mm Oversize

Tick This part will fit the following Vehicles:

Mitsubishi Pajero NK (3.0 Litre V6 6G72 SOHC 12v):
  • GL V33 4WD SUV Full-Size 2 Door [01/1993 to 05/1997] 109KW With Manual Transmission
  • GL, GLS V23 4WD SUV Full-Size 2 Door [01/1991 to 05/1997] 109KW With Manual Transmission
  • GLS V23 4WD SUV Full-Size 2 Door [01/1991 to 05/1997] 109KW With Auto Transmission
  • GLX V43 4WD SUV Full-Size 4 Door [01/1991 to 05/1997] 109KW With Manual Transmission
  • GLX V43 4WD SUV Full-Size 4 Door [01/1991 to 05/1997] 109KW With Auto Transmission
  • V43 4WD SUV Full-Size 4 Door [01/1991 to 05/1997] 109KW With Manual Transmission

Description

Nason, 1.50mm Oversize
