Mitsubishi >> Pajero >> NL >> 2.8 Litre 4 Cyl 4M40-T SOHC 8v >> GL, GLX, GLS V46 09/1995 - 06/2000 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Pajero NL GL, GLX, GLS V46 SUV [09/1995 to 06/2000] (2.8L 4M40-T 4 Cyl SOHC Turbo Diesel Inj)

Part
Nason logo

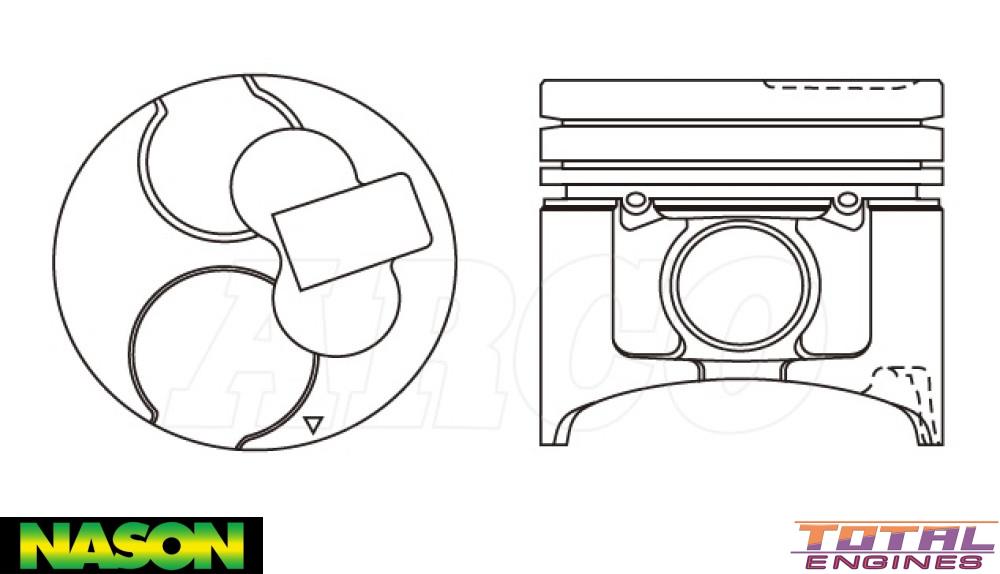

Nason Piston & pin set

Fitment Information:

Oversize - Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: 0.50mm / .020"
Head Type: Flat Top With Clover Leaf and 2 Valve Reliefs
Piston Type: Cast
Length: 91.60mm
Comp Height: 51.60mm, -3.00mm
Pin Size: 30.00mm x 77.90mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.30mm Double Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 33952-0.50

Tick This part will fit the following Vehicles:

Mitsubishi Pajero (2.8 Litre 4 Cyl 4M40-T SOHC 8v):
  • 4WD 2 Door [07/1993 to 05/1996] 93KW With Auto or Manual Transmission
  • 4WD 2 Door [05/1996 to 08/1999] 104KW With Auto or Manual Transmission
Mitsubishi Pajero NH (2.8 Litre 4 Cyl 4M40-T SOHC 8v):
  • V46 4WD SUV 4 Door [11/1993 to 06/2000] 92KW With Manual Transmission
Mitsubishi Pajero NJ (2.8 Litre 4 Cyl 4M40-T SOHC 8v):
  • GL NJ1V45 4WD SUV 4 Door [07/1993 to 05/1996] 92KW With Manual Transmission
  • GLX, GLS NJ3#45 4WD SUV 4 Door [07/1993 to 05/1996] 92KW With Manual Transmission
Mitsubishi Pajero NL (2.8 Litre 4 Cyl 4M40-T SOHC 8v):
  • GL, GLX, GLS V46 4WD SUV 4 Door [09/1995 to 06/2000] 92KW With Manual Transmission
Mitsubishi Pajero NM (2.8 Litre 4 Cyl 4M40-T SOHC 8v):
  • GL, GLX, Gls, Exceed V76W 4WD SUV 4 Door [02/2000 to 03/2002] 92KW With Manual Transmission

Description

Combustion Bowl OD

Alfin, With Oil Gallery Cooling & Anodized Head
