Mitsubishi >> Pajero >> NM >> 3.5 Litre V6 6G74 SOHC 24v >> GL, GLX, Gls, Exceed V75W 02/2000 - 05/2004 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Pajero NM GL, GLX, Gls, Exceed V75W SUV [02/2000 to 05/2004] (3.5L 6G74 V6 SOHC EFI)

Part
Nason logo

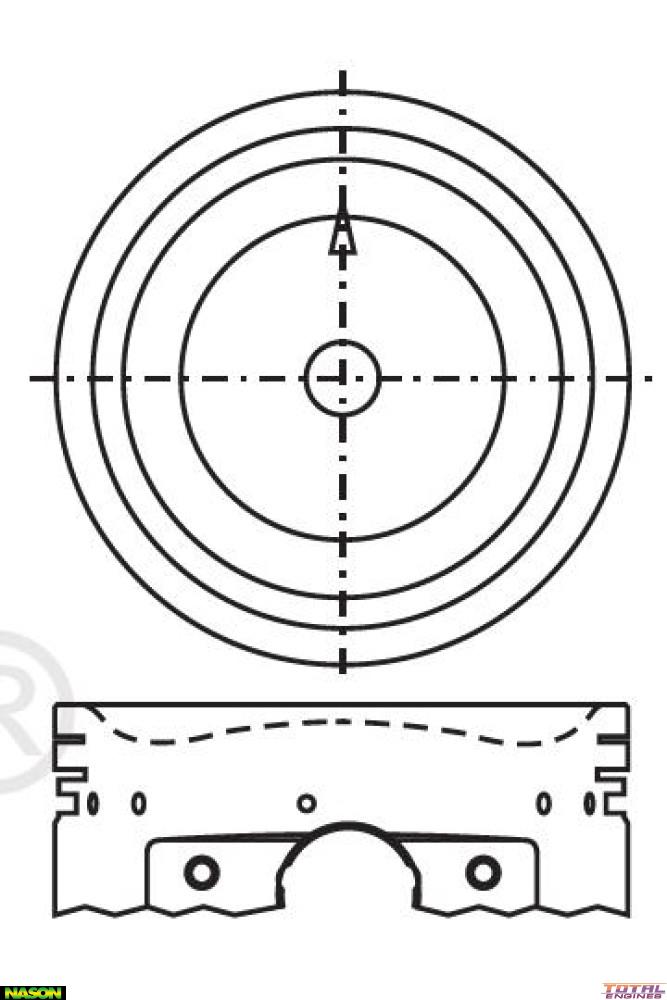

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 6 x Piston & Pins
Std Bore Size: 93.00mm
Size: 1.00mm / .040"
Head Type: Dish Top
Piston Type: Cast
Length: 65.20mm
Comp Height: 31.20mm - 6.00mm
Pin Size: 22.00mm x 64.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 2M4883 or 4883
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Mitsubishi Pajero NM (3.5 Litre V6 6G74 SOHC 24v):
  • GL, GLX, Gls, Exceed V75W 4WD SUV 4 Door [02/2000 to 05/2004] 140KW With Manual Transmission
  • GLX, GLS, Exceed V75W 4WD SUV 4 Door [02/2000 to 07/2003] 140KW With Auto Transmission

Description

Nason, 1.00mm Oversize
