Mitsubishi >> Sigma >> GN >> 2.0 Litre 4 Cyl 4G52 SOHC 8v >> GL GN7H46 07/1985 - 12/1985 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Sigma GN GL GN7H46 Wagon [07/1985 to 12/1985] (2.0L 4G52 4 Cyl SOHC CARB)

Part
Nason logo

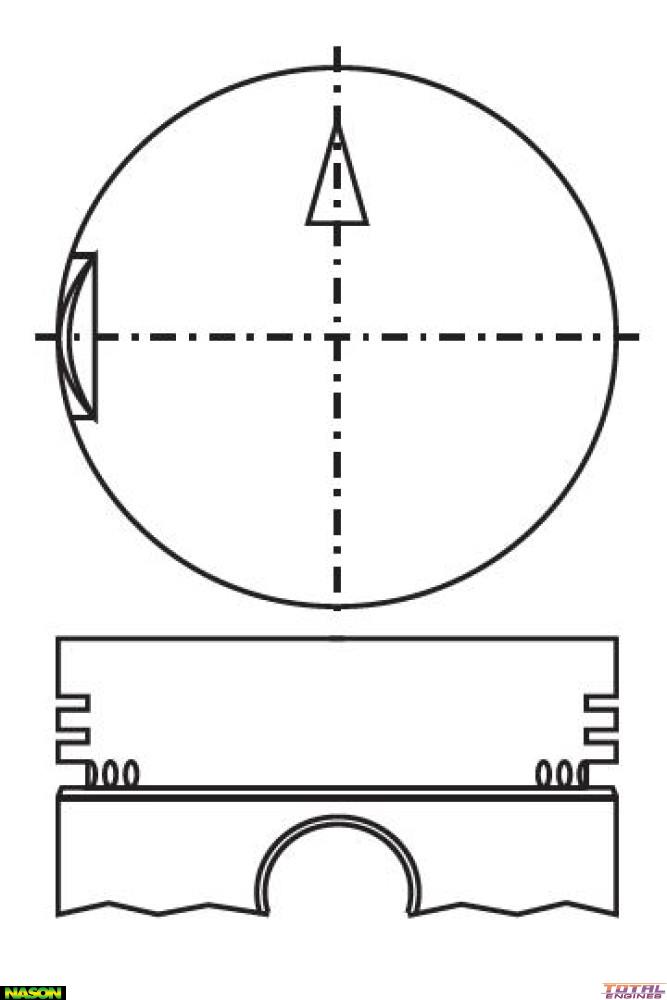

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 84.00mm
Size: 1.00mm / .040"
Head Type: Flat Top with 1 Valve Relief
Piston Type: Cast
Length: 79.30mm
Comp Height: 39.60mm
Pin Size: 22.00mm x 75.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2C4247 or 4247
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Mitsubishi Sigma GN (2.0 Litre 4 Cyl 4G52 SOHC 8v):
  • GL GN7H41 RWD Sedan 4 Door [07/1985 to 12/1985] 70KW With Manual Transmission
  • GL GN7H46 RWD Wagon 4 Door [07/1985 to 12/1985] 70KW With Manual Transmission
  • GL GN8H41 RWD Sedan 4 Door [07/1985 to 12/1985] 70KW With Auto Transmission
  • GL GN8H46 RWD Wagon 4 Door [07/1985 to 12/1985] 70KW With Auto Transmission

Description

Nason, 1.00mm Oversize
