Mitsubishi >> Triton >> MG >> 2.5 Litre 4 Cyl 4D56 SOHC 8v >> MG1V47 06/1989 - 05/1990 4 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Triton MG MG1V47 Wellside [06/1989 to 05/1990] (2.5L 4D56 4 Cyl SOHC Diesel Inj)

Part
Nason logo

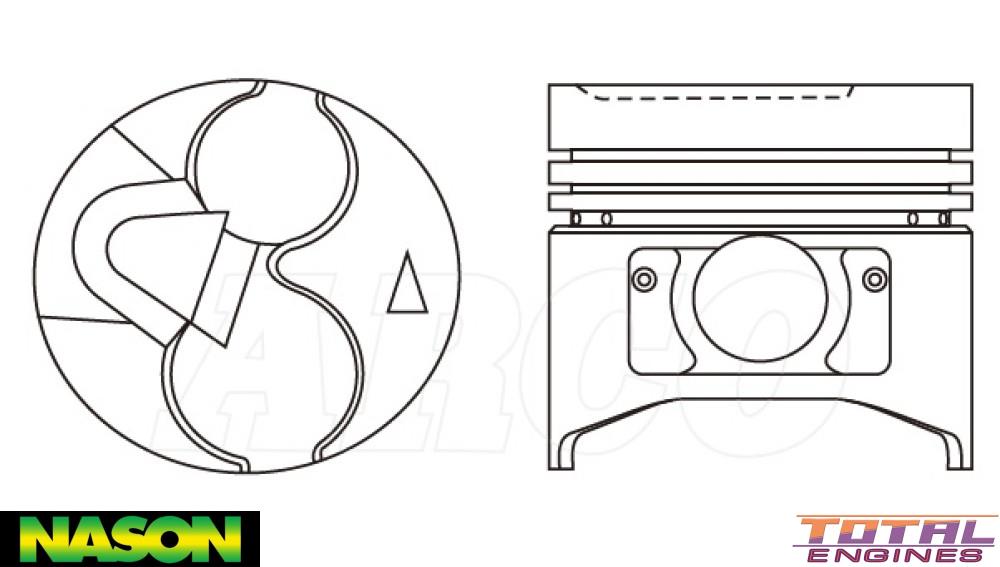

Nason Piston & pin set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: 1.00mm / .040"
Head Type: Flat Top With 2 Valve Reliefs
Piston Type: Cast
Length: 88.70mm
Comp Height: 48.70mm, -2.60mm -2.90mm
Pin Size: 29.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 33861-STD
Size: Oversize 1.00mm

Tick This part will fit the following Vehicles:

Mitsubishi Triton MG (2.5 Litre 4 Cyl 4D56 SOHC 8v):
  • MG1M20 RWD Cab Chassis 2 Door [06/1989 to 05/1990] 55KW With Manual Transmission
  • MG1M27 RWD Wellside 2 Door [06/1989 to 05/1990] 55KW With Manual Transmission
  • MG1V20 4WD Cab Chassis 2 Door [06/1989 to 05/1990] 55KW With Manual Transmission
  • MG1V27 4WD Wellside 2 Door [06/1989 to 05/1990] 55KW With Manual Transmission
  • MG1V47 4WD Wellside 4 Door [06/1989 to 05/1990] 55KW With Manual Transmission

Description

Suits Up To 5/1995

Combustion Bowl OD
