Mitsubishi >> Triton >> MK >> 2.8 Litre 4 Cyl 4M40 SOHC 8v >> GLX K77 06/1996 - 05/2000 2 Door Cab Chassis >> Nason Piston & pin set

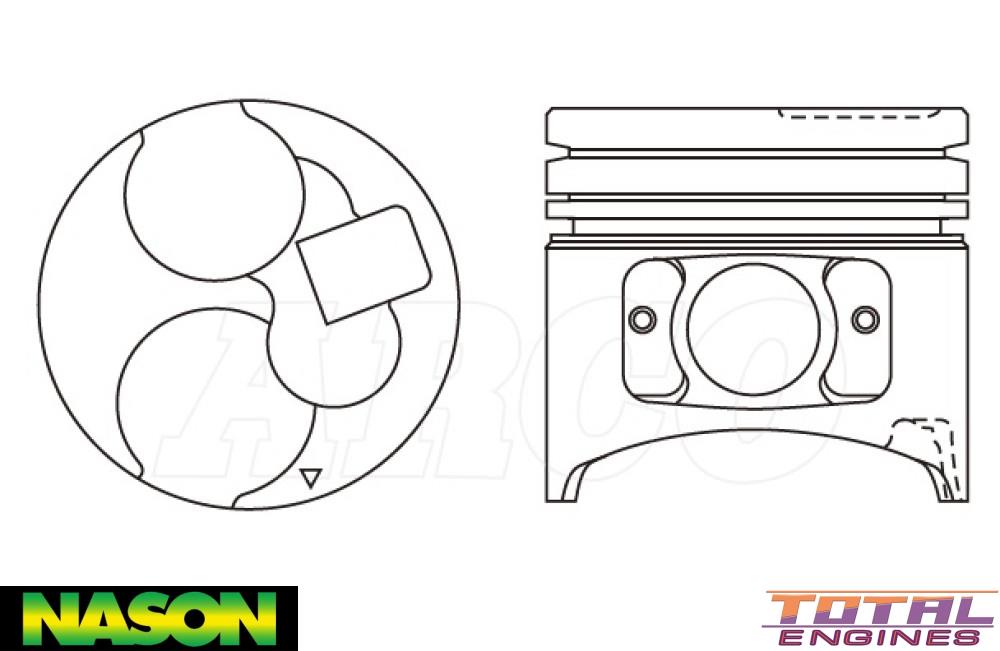

Nason Piston & pin set Fits Mitsubishi Triton MK GLX K77 Cab Chassis [06/1996 to 05/2000] (2.8L 4M40 4 Cyl SOHC Diesel Inj)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 95.00mm
Size: STD
Head Type: Flat Top With Clover Leaf and 2 Valve Reliefs
Piston Type: Cast
Length: 91.70mm
Comp Height: 51.70mm, -1.40mm -3.00mm
Pin Size: 30.00mm x 78.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.30mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 4.00mm
Ring Set: 33922-STD

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Triton (No Series) (2.8 Litre 4 Cyl 4M40 SOHC 8v):
  • K67 RWD Cab Chassis 2 Door [01/2001 to 12/2007] 71KW With Manual Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Triton MK (2.8 Litre 4 Cyl 4M40 SOHC 8v):
  • GLX K67 RWD Cab Chassis 2 Door [06/1996 to 05/2000] 71KW With Manual Transmission
  • GLX K67 RWD Wellside 4 Door [06/1996 to 01/2003] 71KW With Manual Transmission
  • GLX K77 4WD Cab Chassis 2 Door [06/1996 to 05/2000] 71KW With Manual Transmission
  • GLX K77 4WD Cab Chassis 2 Door [06/2000 to 08/2003] 71KW With Manual Transmission
  • GLX, GLS K77 4WD Wellside 4 Door [06/1996 to 08/2003] 71KW With Manual Transmission

Description

Combustion Bowl OD

Alfin & Anodized Head
