Mitsubishi >> Triton >> ML >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> GL-R, Activ KB4 10/2009 - 04/2015 4 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Triton ML GL-R, Activ KB4 Wellside [10/2009 to 04/2015] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize - Pistons only - Suits Engines With 48mm Combustion Bowl

$740.03

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm, -4.50mm -16.00mm

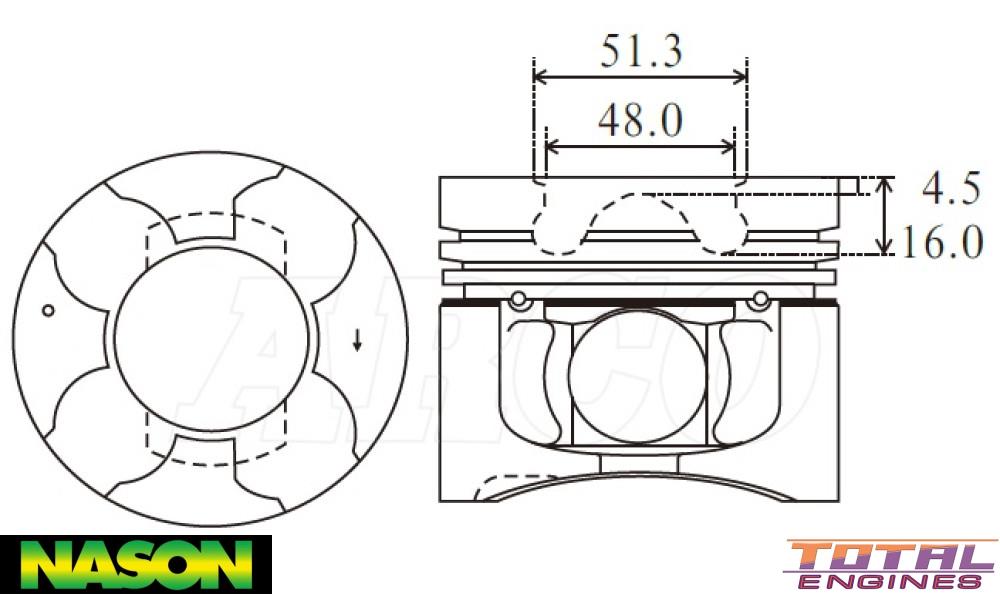

Combustion Bowl OD: 48.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 3.00mm
Ring Set: 33454-0.50 X 4
Size: Suits Engines With 48mm Combustion Bowl

Tick This part will fit the following Vehicles:

Mitsubishi Triton ML (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • GL-R, Activ KB4 4WD Wellside 4 Door [10/2009 to 04/2015] 131KW With Auto Transmission

Description

With 48mm Combustion Bowl 131KW- See Notes For Piston Position

Alfin, Oil Gallery Cooling & Anodized Head

One Line On The Piston Pin Boss = Cylinders 1 and 3

Two Lines On The Piston Pin Boss = Cylinders 2 and 4
