Mitsubishi >> Triton >> ML >> 3.2 Litre Inline 4 4M41T DOHC 16v >> GLX KB8 07/2008 - 08/2009 2 Door Ute/Single Cab Chassis >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Triton ML GLX KB8 Ute/Single Cab Chassis [07/2008 to 08/2009] (3.2L 4M41T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings - 50.5mm Combustion Bowl

Out Of Stock

Specifications
Size: Oversize 1.00mm
Size: 50.5mm Combustion Bowl
Ring Set: 33956-1.00
Oil Ring Width: 3.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 2.30mm Half Keystone
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 32.00mm x 80.00mm
Combustion Bowl OD: 50.50mm
Comp Height: 49.00mm, -7.40mm, -19.00mm
Length: 77.00mm
Piston Type: Cast
Head Type: Combustion Bowl & 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 98.50mm
Piston Set: 4 x Pistons & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Triton (No Series) (3.2 Litre Inline 4 4M41T DOHC 16v):
  • KB8 4WD Ute/Dual Cab Wellside 4 Door [07/2006 to 07/2008] 118KW With Auto Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Triton ML (3.2 Litre Inline 4 4M41T DOHC 16v):
  • GLX KB8 4WD Ute/Single Cab Chassis 2 Door [07/2006 to 07/2008] 118KW With Manual Transmission
  • GLX KB8 4WD Ute/Single Cab Chassis 2 Door [05/2007 to 07/2008] 118KW With Auto or Manual Transmission
  • GLX KB8 4WD Ute/Single Cab Chassis 2 Door [07/2008 to 08/2009] 118KW With Manual Transmission
  • GLX KB8 4WD Ute/Single Cab Chassis 2 Door [07/2008 to 08/2009] 118KW With Auto Transmission
  • Glx, GLX-R, GLS KB8 4WD Ute/Dual Cab Wellside 4 Door [05/2007 to 07/2008] 118KW With Auto Transmission
  • Glx, GLX-R, GLS KB8 4WD Ute/Dual Cab Wellside 4 Door [07/2008 to 08/2009] 118KW With Auto Transmission
  • Glx, GLX-R, Gls, VR KB8 4WD Ute/Dual Cab Wellside 4 Door [07/2006 to 07/2008] 118KW With Manual Transmission
  • Glx, GLX-R, VR KB8 4WD Ute/Dual Cab Wellside 4 Door [07/2008 to 08/2009] 118KW With Manual Transmission

Description

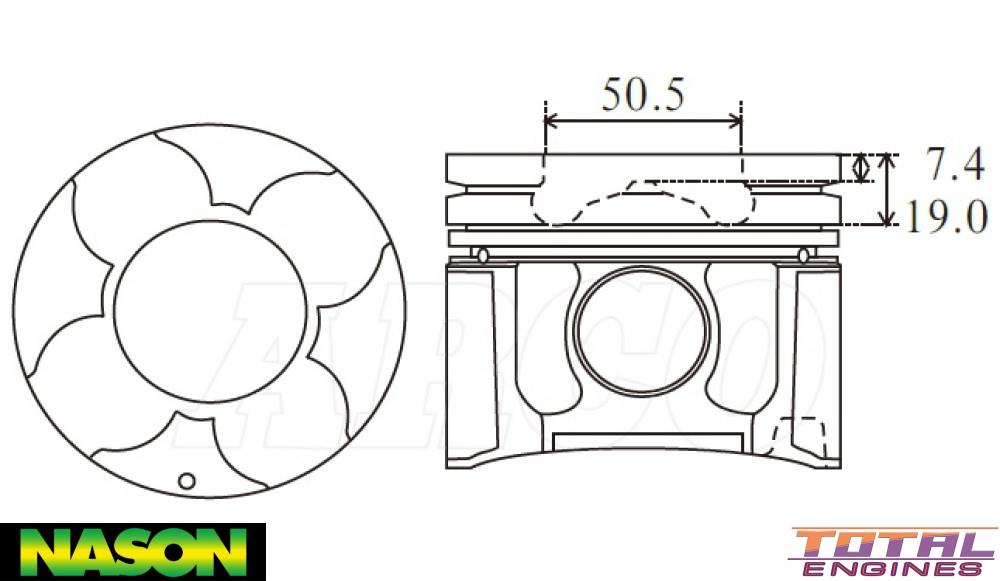

With 50.5mm Combustion Bowl, 49mm Comp Height

Alfin, With Oil Gallery Cooling
