Mitsubishi >> Triton >> ML >> 2.4 Litre 4 Cyl 4G64 SOHC 8v >> GL KA5 07/2008 - 04/2015 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Triton ML GL KA5 Ute [07/2008 to 04/2015] (2.4L 4G64 4 Cyl SOHC MPFI)

Part
Nason logo

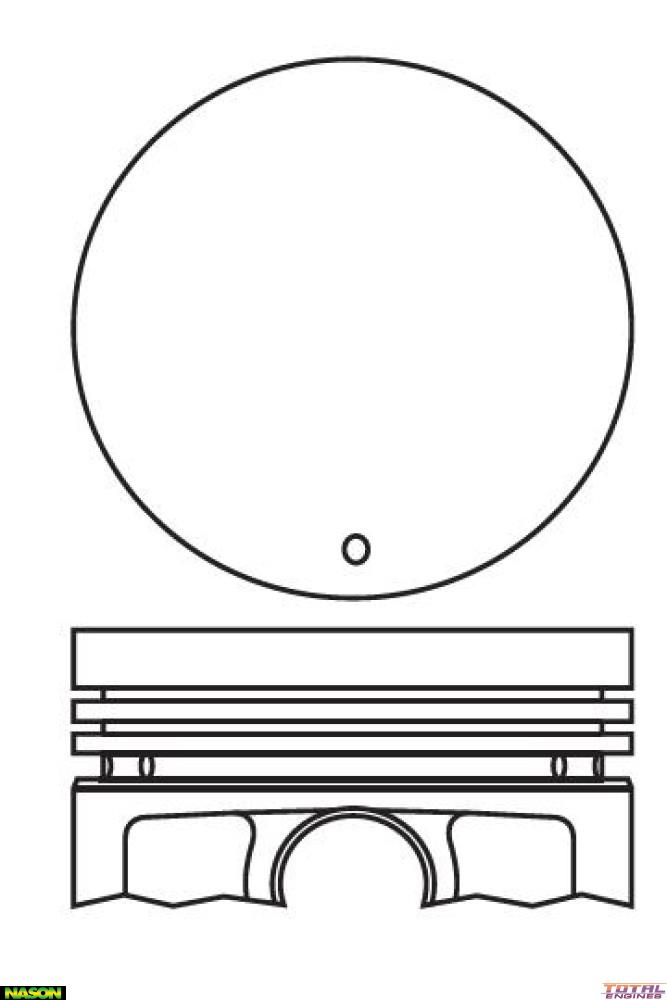

Nason Piston & pin set

Fitment Information:

Nason, STD Size Flat Top

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 86.50mm
Size: Std
Head Type: Flat Top
Piston Type: Cast
Length: 53.50mm
Comp Height: 30.50mm
Pin Size: 22.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4780

Tick This part will fit the following Vehicles:

Mitsubishi Triton ML (2.4 Litre 4 Cyl 4G64 SOHC 8v):
  • GL KA5 RWD Ute 2 Door [01/2007 to 06/2008] 94KW With Manual Transmission
  • GL KA5 RWD Ute 2 Door [07/2008 to 04/2015] 94KW With Manual Transmission
  • GLX KA5 RWD Wellside 4 Door [01/2007 to 06/2008] 94KW With Manual Transmission

Description

Nason, STD Size
