Mitsubishi >> Triton >> MN >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> GLX KA4 07/2008 - 04/2015 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Triton MN GLX KA4 Ute [07/2008 to 04/2015] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

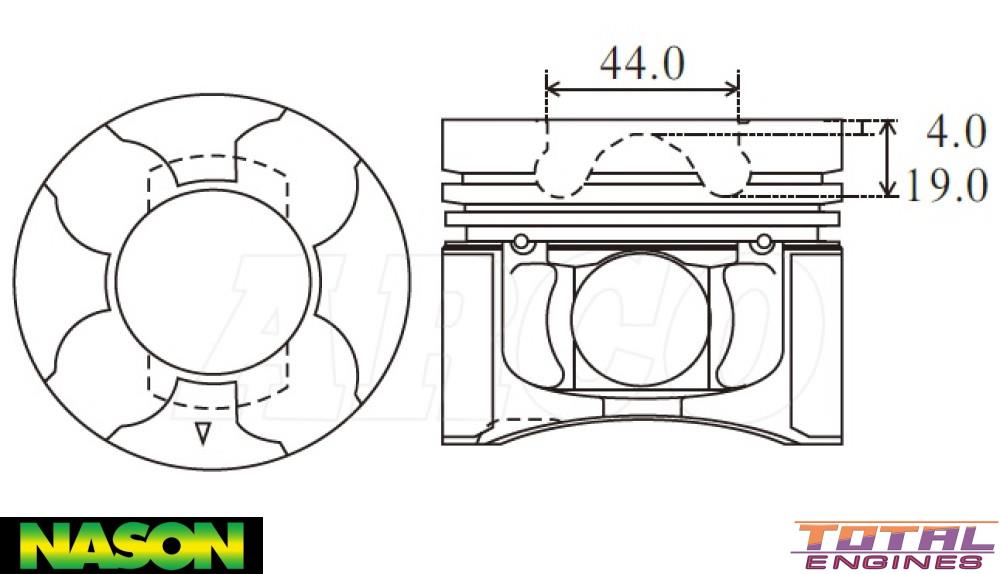

Pistons only - Suits Engines With 44mm Combustion Bowl

$717.50

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: STD
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm, -4.00mm -19.00mm
Combustion Bowl OD: 44.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 4.00mm
Ring Set: 33979-STD
Size: Suits Engines With 44mm Combustion Bowl

Tick This part will fit the following Vehicles:

Mitsubishi Triton MN (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • GLX KA4 RWD Ute 2 Door [07/2008 to 04/2015] 100KW With Manual Transmission
  • GLX KA4 RWD Ute 2 Door [07/2008 to 04/2015] 100KW With Auto Transmission
  • GLX, GL KA4 RWD Ute 2 Door [07/2008 to 04/2015] 100KW With Manual Transmission
  • KA4 RWD Wellside 4 Door [07/2008 to 04/2015] 100KW With Manual Transmission
  • KA4 RWD Wellside 4 Door [07/2008 to 04/2015] 100KW With Auto Transmission
  • KA4 RWD Wellside 4 Door [01/2011 to 04/2015] 100KW With Manual Transmission

Description

With 44mm Combustion Bowl 100KW- See Notes For Piston Position

Alfin, Oil Gallery Cooling & Anodized Head

One Line On The Piston Pin Boss = Cylinders 1 and 3

Two Lines On The Piston Pin Boss = Cylinders 2 and 4
