Mitsubishi >> Triton >> MN >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> GLX KB4 09/2009 - 04/2015 2 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Triton MN GLX KB4 Ute [09/2009 to 04/2015] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize - Pistons only - Suits Engines With 48mm Combustion Bowl

$740.03

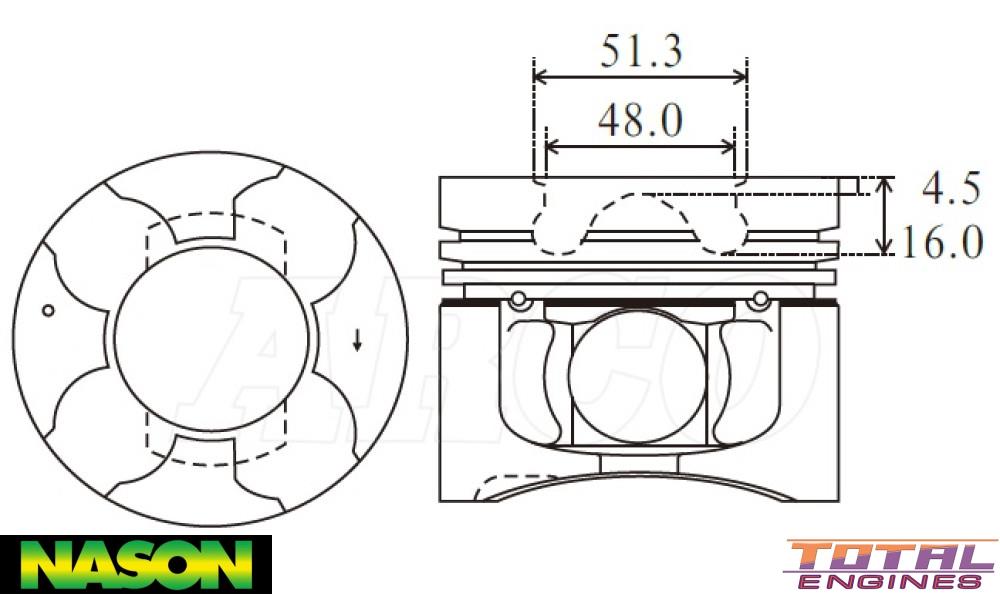

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: 0.50mm / .020"
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm, -4.50mm -16.00mm
Combustion Bowl OD: 48.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 3.00mm
Ring Set: 33454-0.50 X 4
Size: Suits Engines With 48mm Combustion Bowl

Tick This part will fit the following Vehicles:

Mitsubishi Triton MN (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • GL-R, GLX-R, Activ KB4 4WD Wellside 4 Door [09/2009 to 04/2015] 131KW With Manual Transmission
  • GLS, GLX-R KB4 4WD Wellside 4 Door [10/2009 to 04/2015] 131KW With Auto Transmission
  • GLX Club KB4 4WD Ute 2 Door [10/2010 to 04/2015] 131KW With Manual Transmission
  • GLX KB4 4WD Ute 2 Door [09/2009 to 04/2015] 131KW With Manual Transmission

Description

Nason Piston & Pin Set 0.50 Oversize - Performance and Precision for Your Mitsubishi Triton

Elevate your engine performance with the Nason Piston & Pin Set 0.50 Oversize, specifically engineered to enhance the efficiency and power of your Mitsubishi Triton. This high-quality piston set is designed to meet the demands of both casual drivers and automotive enthusiasts, offering an unbeatable combination of durability and performance.

Key Features:

  • Precision Engineering: Each piston features a combustion bowl with a 48mm diameter, crafted for optimal air-fuel mixing and combustion efficiency. With a power rating of 131KW, you can expect better torque and horsepower from your engine.
  • Robust Construction: Manufactured using cast aluminum, our pistons guarantee long-lasting performance and reliability. The anodized piston head offers superior heat resistance, while the innovative oil gallery cooling system helps maintain optimal operating temperatures.
  • Easy Installation: Designed for seamless fitment, the Nason Piston Set includes four pistons and pins alongside a detailed label for correct piston position identification. Cylinders 1 and 3 feature a single line on the piston pin boss, while cylinders 2 and 4 are marked with two lines for easy identification during installation.
  • Comprehensive Specs:
  • Std Bore Size: 91.10mm
  • Size: 0.50mm / .020\"
  • Length: 78.20mm
  • Comp Height: 48.20mm (with -4.50mm and -16.00mm adjustments)
  • Pin Size: 32.00mm x 75.00mm (full floating type)
  • Skirt Coating: Yes
  • Top Ring Width: 2.50mm (Half Keystone)
  • 2nd Ring Width: 2.00mm (Half Keystone)
  • Oil Ring Width: 3.00mm
  • Ring Set: 33454-0.50 X 4

Important Compatibility Notice: This piston set is compatible with the following Mitsubishi Triton vehicles:

  • Mitsubishi Triton ML 2.5L
  • Mitsubishi Triton MN 2.5L GL-R, GLX-R, Activ KB4 4WD (131kw)
  • Mitsubishi Triton MN 2.5L GLS, GLX-R KB4 4WD (131kw)
  • Mitsubishi Triton MN 2.5L GLX Club KB4 4WD (131kw)
  • Mitsubishi Triton MN 2.5L GLX KB4 4WD (131kw)

Please Note: This product is NOT suitable for Mitsubishi Triton MN 2.5L GLX KA4 RWD (100kw) models. Ensure compatibility before purchase to avoid installation issues.

Upgrade your Mitsubishi Triton today with the Nason Piston & Pin Set 0.50 Oversize. Combine power, efficiency, and reliability for an unbeatable driving experience!
