Mitsubishi >> Triton >> MN >> 2.5 Litre 4 Cyl 4D56-T DOHC 16v >> GLX KB4 09/2009 - 04/2015 2 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Mitsubishi Triton MN GLX KB4 Ute [09/2009 to 04/2015] (2.5L 4D56-T 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Pin Set

Fitment Information:

Oversize 1.00mm - Pistons only - Suits Engines With 48mm Combustion Bowl

$740.03

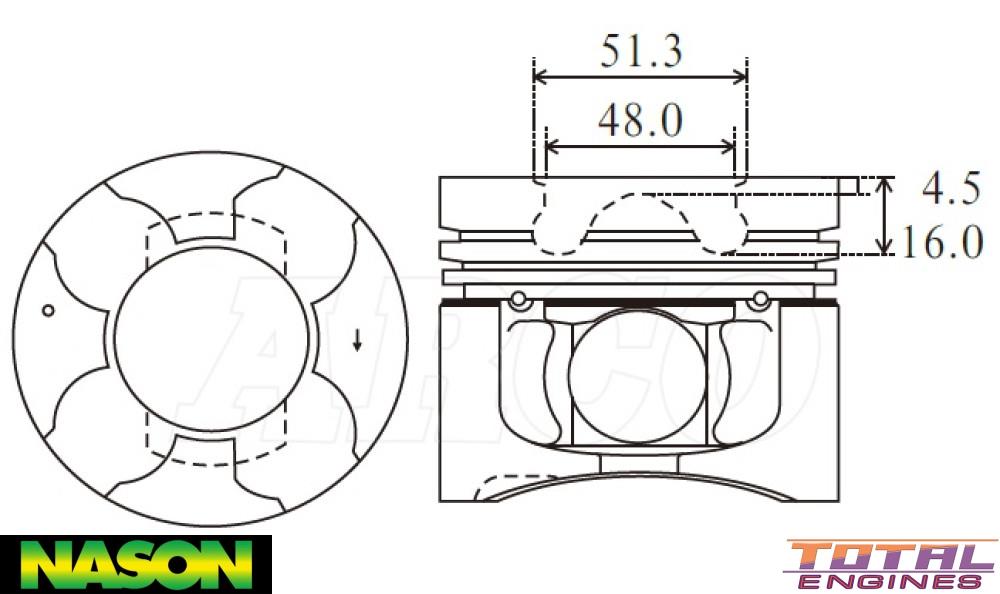

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 91.10mm
Size: 1.00mm / .040"
Head Type: Combustion Bowl With 4 Valve Reliefd
Piston Type: Cast
Length: 78.20mm
Comp Height: 48.20mm, -4.50mm -16.00mm
Combustion Bowl OD: 48.00mm
Pin Size: 32.00mm x 75.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm Half Keystone
Oil Ring Width: 3.00mm
Ring Set: 33454-1.00 X 4
Size: Oversize 1.00mm
Size: Suits Engines With 48mm Combustion Bowl

Tick This part will fit the following Vehicles:

Mitsubishi Triton MN (2.5 Litre 4 Cyl 4D56-T DOHC 16v):
  • GL-R, GLX-R, Activ KB4 4WD Wellside 4 Door [09/2009 to 04/2015] 131KW With Manual Transmission
  • GLS, GLX-R KB4 4WD Wellside 4 Door [10/2009 to 04/2015] 131KW With Auto Transmission
  • GLX Club KB4 4WD Ute 2 Door [10/2010 to 04/2015] 131KW With Manual Transmission
  • GLX KB4 4WD Ute 2 Door [09/2009 to 04/2015] 131KW With Manual Transmission

Description

Nason Piston & Pin Set 1.00 Oversize - Precision Performance for Your Mitsubishi Triton

Upgrade your Mitsubishi Triton’s engine performance with the Nason Piston & Pin Set 1.00 Oversize. Designed for durability and optimized efficiency, this premium piston set is tailored to enhance your vehicle's capabilities, making it the ideal choice for serious enthusiasts and dedicated mechanics alike.

Key Features:

  • Perfect Fit for Select Models: This piston set is compatible with the Mitsubishi Triton ML 2.5L and various MN models (GL-R, GLX-R, Activ, GLS, GLX Club, and GLX), delivering a powerful boost with an impressive output of 131KW.
  • Precision Engineering: With a standard bore size of 91.10mm, this piston set features a combustion bowl designed with 4 valve reliefs, ensuring efficient fuel combustion and enhanced performance.
  • Advanced Design: The set includes 4 high-quality cast pistons, each equipped with an anodized head for superior heat resistance and durability. The pistons measure 78.20mm in length and feature a compression height of 48.20mm.
  • Enhanced Cooling: The innovative Alfin and oil gallery cooling design is engineered to keep your engine running smoothly under the most demanding conditions.
  • Floating Pin Technology: The full floating pin dimensions (32.00mm x 75.00mm) provide optimal friction reduction for improved engine efficiency.
  • Smart Markings for Easy Installation: The pistons include clear markings; one line on the piston pin boss for cylinders 1 and 3, and two lines for cylinders 2 and 4, ensuring hassle-free installation.
  • Superior Skirt Coating: Each piston comes with a specialized skirt coating that reduces wear and enhances performance longevity.

Specifications:

  • Size: Oversize 1.00mm / .040\"
  • Top Ring Width: 2.50mm Half Keystone
  • 2nd Ring Width: 2.00mm Half Keystone
  • Oil Ring Width: 3.00mm
  • Ring Set: 33454-1.00 X 4

Important Fitment Information:

WARNING! This piston and pin set will NOT fit the following vehicles:

  • Mitsubishi Triton MN 2.5L GLX KA4 RWD 100kw
  • Mitsubishi Triton MN 2.5L GLX, GL KA4 RWD 100kw
  • Mitsubishi Triton MN 2.5L KA4 RWD 100kw

Make the smart choice for your Mitsubishi Triton with the Nason Piston & Pin Set 1.00 Oversize. Available now for enthusiasts who demand nothing but the best for their machines. Don’t settle for less—boost your engine’s power and efficiency today!
