Nissan >> Datsun >> D21 >> 2.0 Litre 4 Cyl Z20S SOHC 8v >> FYD21 08/1986 - 09/1989 4 Door Ute >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Nissan Datsun D21 FYD21 Ute [08/1986 to 09/1989] (2.0L Z20S 4 Cyl SOHC CARB)

Part
Nason logo

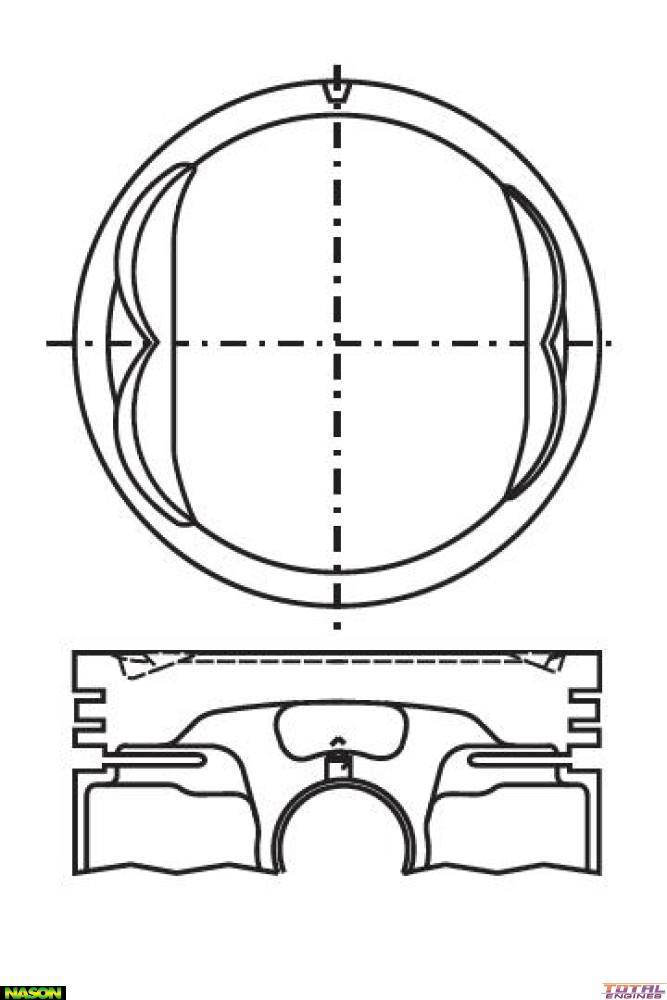

Nason Piston & Pin Set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M6899 or 6899
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.50mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 21.00mm x 72.00mm
Comp Height: 32.00mm - 1.60mm
Length: 67.00mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 85.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Nissan Datsun D21 (2.0 Litre 4 Cyl Z20S SOHC 8v):
  • FMD21 4WD Ute 4 Door [08/1986 to 09/1989] 66KW With Manual Transmission
  • FYD21 4WD Ute 4 Door [08/1986 to 09/1989] 66KW With Manual Transmission
  • GL FGD21 RWD Cab Chassis 2 Door [08/1987 to 09/1989] 66KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
