Nissan >> Navara >> D40 >> 2.5 Litre 4 Cyl YD25DDTI DOHC 16v >> ST, ST-X CVAD40 05/2010 - 04/2015 4 Door Wellside >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Nissan Navara D40 ST, ST-X CVAD40 Wellside [05/2010 to 04/2015] (2.5L YD25DDTI 4 Cyl DOHC Turbo Direct Inj)

Part
Nason logo

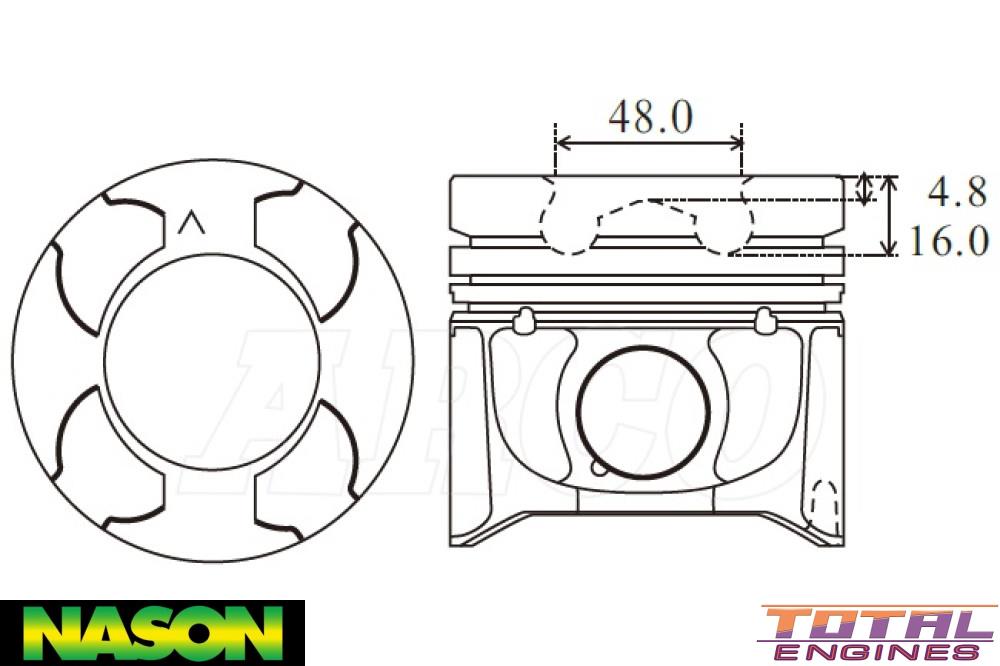

Nason Piston & Pin Set

Fitment Information:

Pistons Only- Does not Include Rings-2 Valve Reliefs

$617.76

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 89.00mm
Head Type: Combustion Bowl With 4 Valve Reliefs
Piston Type: Cast
Length: 76.80mm
Comp Height: 48.80mm, -7.70mm -16.60mm
Combustion Bowl OD: 48.50mm
Pin Size: 28.00mm x 68.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 3.00mm
Ring Set: 34134-STD

Alert WARNING! This part will NOT FIT the following Vehicles:

Nissan Navara D40 (2.5 Litre 4 Cyl YD25DDTI DOHC 16v):
  • RX VCGD40 RWD Wellside 4 Door [12/2009 to 12/2009] 106KW With Auto or Manual Transmission
  • RX, ST-X CVND40 4WD Ute 4 Door [12/2005 to 12/2009] 126KW With Auto or Manual Transmission
  • ST, ST-X, RX VCUD40 4WD Ute 4 Door [12/2009 to 12/2009] 126KW With Auto or Manual Transmission
  • ST-X CVAD40 RWD Wellside 4 Door [12/2005 to 04/2010] 106KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Nissan Navara D40 (2.5 Litre 4 Cyl YD25DDTI DOHC 16v):
  • RX VCGD40 RWD Wellside 4 Door [01/2010 to 04/2015] 106KW With Auto or Manual Transmission With: With 2 Valve Reliefs
  • RX, ST-X CVND40 4WD Ute 4 Door [01/2010 to 04/2015] 126KW With Auto or Manual Transmission With: With 2 Valve Reliefs
  • ST, ST-X CVAD40 RWD Wellside 4 Door [05/2010 to 04/2015] 120KW With Auto or Manual Transmission With: With 2 Valve Reliefs
  • ST, ST-X CVND40 4WD Ute 4 Door [01/2010 to 04/2015] 140KW With Auto or Manual Transmission With: With 2 Valve Reliefs
  • ST, ST-X, RX VCUD40 4WD Ute 4 Door [01/2010 to 04/2015] 126KW With Auto or Manual Transmission With: With 2 Valve Reliefs

Description

Nason Piston & Pin Set STD Size - Elevate Your Engine Performance

Brand: Nason

Category: Cylinder Block

Product Type: Piston & Pin Set

Upgrade Your Ride with Nason Performance!

Revitalize your Nissan Pathfinder's engine with the Nason Piston & Pin Set STD Size, expertly designed for vehicles suited to R51M & D40M models starting from January 2010. Delivering exceptional performance and reliability, this piston and pin set is engineered to enhance your vehicle's power and efficiency.

Specifications:

  • Set Includes: 4 x Pistons & Pins
  • Standard Bore Size: 89.00mm
  • Head Type: Combustion Bowl with 4 Valve Reliefs
  • Piston Type: Cast
  • Length: 76.80mm
  • Compression Height: 48.80mm (with -7.70mm and -16.60mm variants available)
  • Combustion Bowl Outer Diameter: 48.50mm
  • Pin Size: 28.00mm x 68.00mm
  • Pin Type: Full Floating
  • Skirt Coating: Yes for enhanced performance
  • Piston to Bore Match: Refer to label on box for specific fit
  • Ring Set: 34134-STD
  • Top Ring Width: 2.00mm Half Keystone
  • 2nd Ring Width: 2.00mm
  • Oil Ring Width: 3.00mm

Important Fitment Information:

This product is compatible with:

  • Nissan Pathfinder R51 2.5L [01/2010 to 05/2010] with 2 Valve Reliefs
  • Nissan Pathfinder R51 2.5L with 2 Valve Reliefs

WARNING: This product does NOT fit the following vehicle:

  • Nissan Pathfinder R51 2.5L [07/2005 to 12/2009]

Why Choose Nason?

Choosing Nason means choosing quality and performance. Designed with Alfin Inserts and Oil Gallery Cooling for superior longevity, these pistons are built to withstand rigorous driving conditions. Experience smoother operation, improved fuel economy, and better overall engine efficiency with each drive.

Elevate your Nissan Pathfinder's performance! Order your Nason Piston & Pin Set today and redefine your driving experience.
