Nissan >> Nomad >> C22 >> 2.4 Litre 4 Cyl Z24 SOHC 8v >> WSC22 12/1986 - 10/1992 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Nissan Nomad C22 WSC22 Wagon [12/1986 to 10/1992] (2.4L Z24 4 Cyl SOHC CARB)

Part
Nason logo

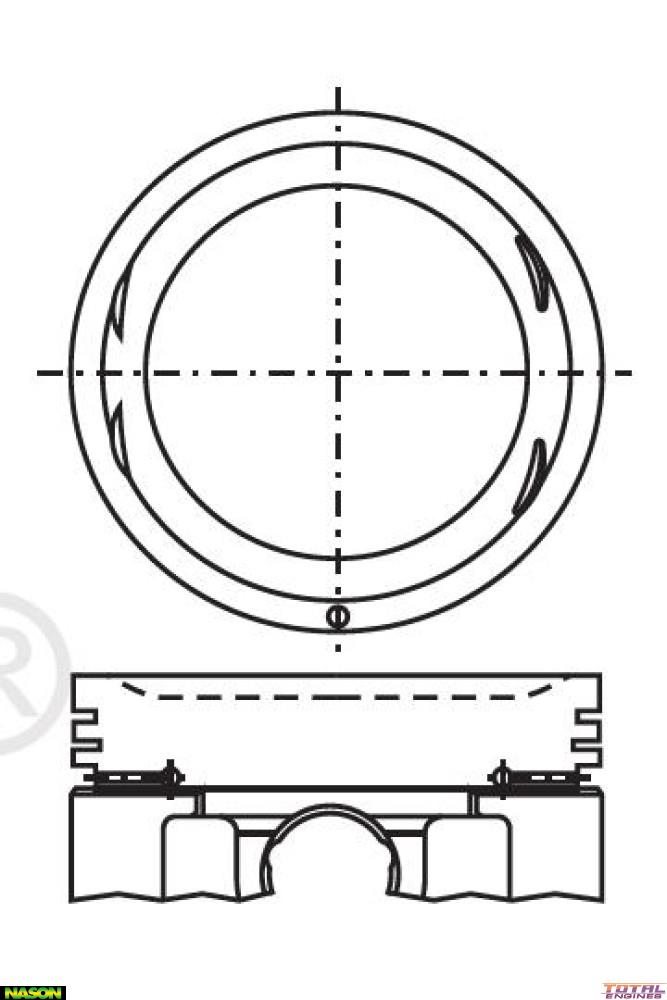

Nason Piston & pin set

$231.66

Specifications
Ring Set: 2C4452 or 4452
Oil Ring Width: 4.00mm
2nd Ring Width: 1.50mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 21.00mm x 66.50mm
Comp Height: 34.00mm - 4.00mm
Length: 70.50mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: Std
Std Bore Size: 89.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Nissan Nomad C22 (2.4 Litre 4 Cyl Z24 SOHC 8v):
  • WSC22 RWD Wagon 4 Door [12/1986 to 10/1992] 74KW With Auto or Manual Transmission

Description

Nason, STD Size
