Nissan >> Sentra >> B12 >> 1.3 Litre 4 Cyl E13S SOHC 8v >> SG WB12 01/1986 - 12/1989 4 Door Wagon >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Nissan Sentra B12 SG WB12 Wagon [01/1986 to 12/1989] (1.3L E13S 4 Cyl SOHC CARB)

Part
Nason logo

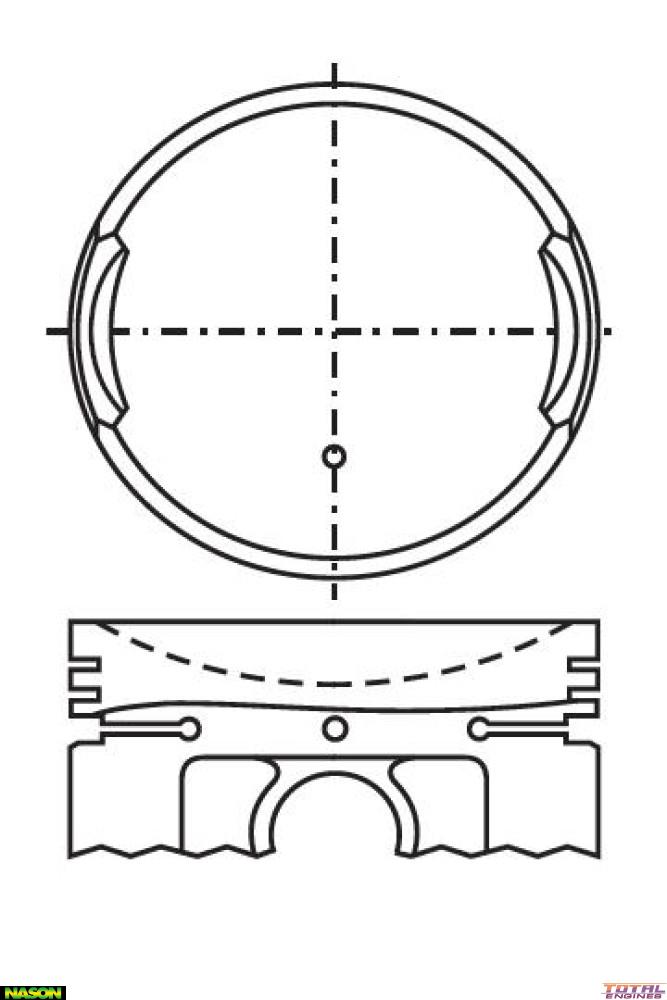

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 76.00mm
Head Type: Dish Top with 2 Valve Relief
Piston Type: Cast
Length: 62.50mm
Comp Height: 32.50mm - 9.41mm
Pin Size: 19.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 4.00mm
Ring Set: 2M6151 or 6151

Tick This part will fit the following Vehicles:

Nissan Sentra B12 (1.3 Litre 4 Cyl E13S SOHC 8v):
  • SG WB12 FWD Wagon 4 Door [01/1986 to 12/1989]

Description

Nason, STD Size
