Renault >> Koleos >> H45 >> 2.0 Litre 4 Cyl M9R 832 DOHC 16v >> Dynamique 05/2010 - 10/2011 4 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Renault Koleos H45 Dynamique SUV [05/2010 to 10/2011] (2.0L M9R 832 4 Cyl DOHC Turbo MPFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Pistons Only- Does not Include Rings

$563.03

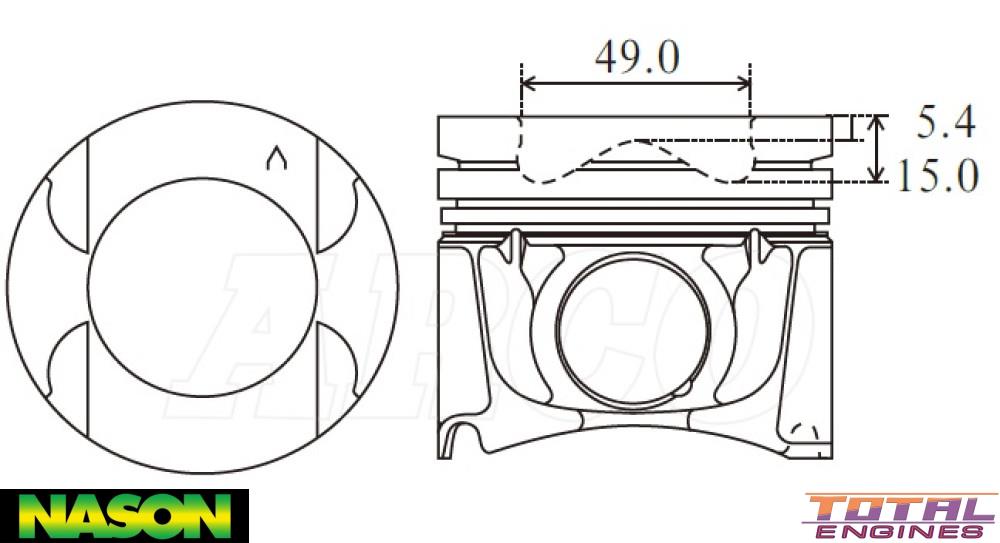

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 84.00mm
Size: STD
Head Type: Flat Top With Combustion Bowl & 4 Valve Reliefs
Piston Type: Cast
Length: 76.00mm
Comp Height: 47.90mm, -5.40mm, -15.00mm
Pin Size: 32.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half Keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm
Ring Set: 2D7343-STD

Tick This part will fit the following Vehicles:

Renault Koleos H45 (2.0 Litre 4 Cyl M9R 832 DOHC 16v):
  • AWD SUV 4 Door [11/2011 to 08/2013] 110KW With Auto Transmission
  • Dynamique FWD SUV 4 Door [09/2009 to 04/2010] 110KW With Continuously Variable Transmission
  • Dynamique FWD SUV 4 Door [09/2009 to 04/2010] 110KW With Manual or Continuously Variable Transmission
  • Dynamique AWD SUV 4 Door [05/2010 to 10/2011] 110KW With Continuously Variable Transmission

Description

Combustion Bowl OD

Alfin, Oil Gallery Cooling
