Renault >> Master >> X62 >> 2.3 Litre 4 Cyl M9T D DOHC 16v >> L3 02/2015 - 09/2017 2 Door Van/Cab Chassis >> Nason Piston & Ring Set

Nason Piston & Ring Set Fits Renault Master X62 L3 Van/Cab Chassis [02/2015 to 09/2017] (2.3L M9T D 4 Cyl DOHC I/C Turbo CRD)

Part
Nason logo

Nason Piston & Ring Set

Fitment Information:

Inc Rings - Nason, STD Size

Out Of Stock

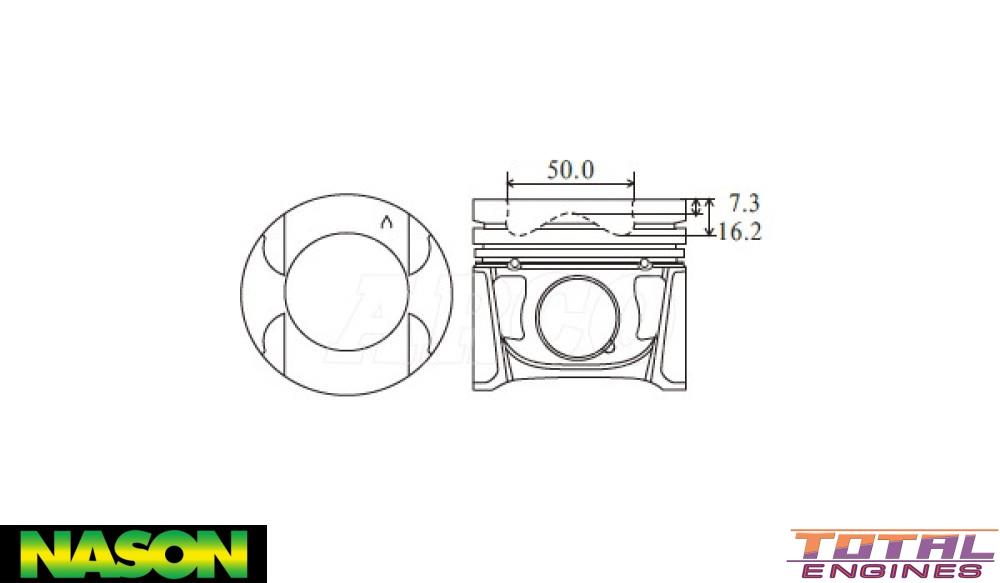

Specifications
Piston Set: 4 x Pistons, Pins & Rings
Std Bore Size: 85.00mm
Head Type: Dish type with four valve releifs
Piston Type: Cast
Length: 76.00mm
Comp Height: 47.90mm - 16.20mm- 7.30mm
Combustion Bowl OD: 50.00mm
Pin Size: 32.00mm x 65.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.50mm Half keystone
2nd Ring Width: 2.00mm
Oil Ring Width: 2.00mm

Tick This part will fit the following Vehicles:

Renault Master X62 (2.3 Litre 4 Cyl M9T D DOHC 16v):
  • 3.5 LWB MID L4H3 FWD Commercial Van 3 Door [09/2013 to 01/2015] 107KW With Manual or Automated Manual Transmission
  • 4.5 Elwb High RWD Van/Cab Chassis 2 Door [09/2013 to 01/2015] 107KW With Manual or Automated Manual Transmission
  • 4.5 LWB RWD Van/Cab Chassis 2 Door [09/2013 to 01/2015] 107KW With Manual or Automated Manual Transmission
  • 4.5 LWB RWD Van/Cab Chassis 4 Door [09/2013 to 01/2015] 107KW With Manual or Automated Manual Transmission
  • 4.5 MWB RWD Van/Cab Chassis 2 Door [09/2013 to 01/2015] 107KW With Manual or Automated Manual Transmission
  • Elwb L4H3 RWD Commercial Van 3 Door [02/2015 Onwards] 110KW With Manual or Automated Manual Transmission
  • L3 FWD Van/Cab Chassis 2 Door [02/2015 to 09/2017] 110KW With Manual or Automated Manual Transmission
  • L4H3 FWD Commercial Van 3 Door [09/2013 to 01/2015] 110KW With Manual or Automated Manual Transmission
  • LWB L4H1 RWD Van/Cab Chassis 2 Door [02/2015 to 09/2019] 110KW With Manual or Automated Manual Transmission
  • LWB MIB L3H2 FWD Minibus 3 Door [01/2016 Onwards] 110KW With Manual or Automated Manual Transmission
  • SWB L3H2 FWD Commercial Van 3 Door [02/2015 Onwards] 110KW With Manual or Automated Manual Transmission

Description

Inc Rings - Nason, STD Size
