Nason Piston & Ring Set Fits Renault Master X70 Integral MWB Commercial Van [09/2004 to 04/2007] (2.5L G9U 750 4 Cyl DOHC I/C Turbo CRD)

Name: Nason Piston & Ring Set Fits Renault Master X70 Integral MWB Commercial Van [09/2004 to 04/2007] (2.5L G9U 750 4 Cyl DOHC I/C Turbo CRD)
Brand: Nason
SKU: TE1380769
Availability: OutOfStock

Nason Piston & Ring Set

Fitment Information:

Inc Rings - Nason, 0.50mm Oversize

Out Of Stock

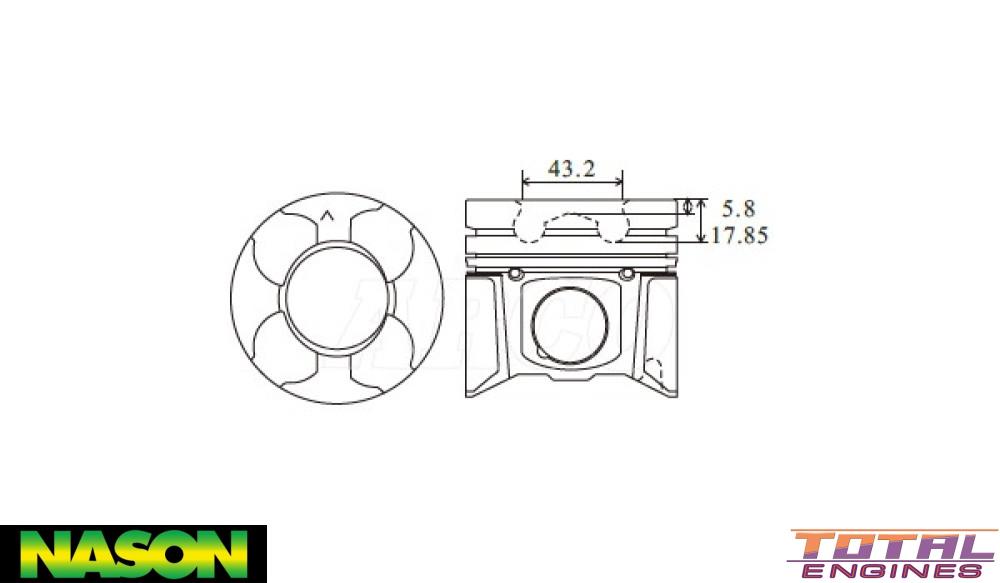

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	89.00mm
Size:	0.50mm/.020"
Head Type:	Dish top with four valve reliefs
Piston Type:	Cast
Length:	83.09mm
Comp Height:	53.03mm - 5.80mm -17.58mm
Combustion Bowl OD:	43.00mm
Pin Size:	31.00mm x 65.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	1.75mm
Oil Ring Width:	2.50mm
Size:	0.50mm Oversize

This part will fit the following Vehicles:

Renault Master X70 (2.5 Litre 4 Cyl G9U 750 DOHC 16v):

Integral MWB FWD Commercial Van 3 Door [09/2004 to 04/2007] 84KW With Manual or Automated Manual Transmission
LWB FWD Commercial Van 3 Door [09/2004 to 04/2007] 84KW With Manual or Automated Manual Transmission
