Nason Piston & Ring Set Fits Renault Trafic X83 LWB High Roof L2H2 Commercial Van [04/2004 to 04/2007] (1.9L F9Q 870/2 4 Cyl SOHC I/C Turbo CRD)

Name: Nason Piston & Ring Set Fits Renault Trafic X83 LWB High Roof L2H2 Commercial Van [04/2004 to 04/2007] (1.9L F9Q 870/2 4 Cyl SOHC I/C Turbo CRD)
Brand: Nason
SKU: TE1380763
Availability: OutOfStock

Nason Piston & Ring Set

Fitment Information:

Inc Rings - Nason, STD Size

Out Of Stock

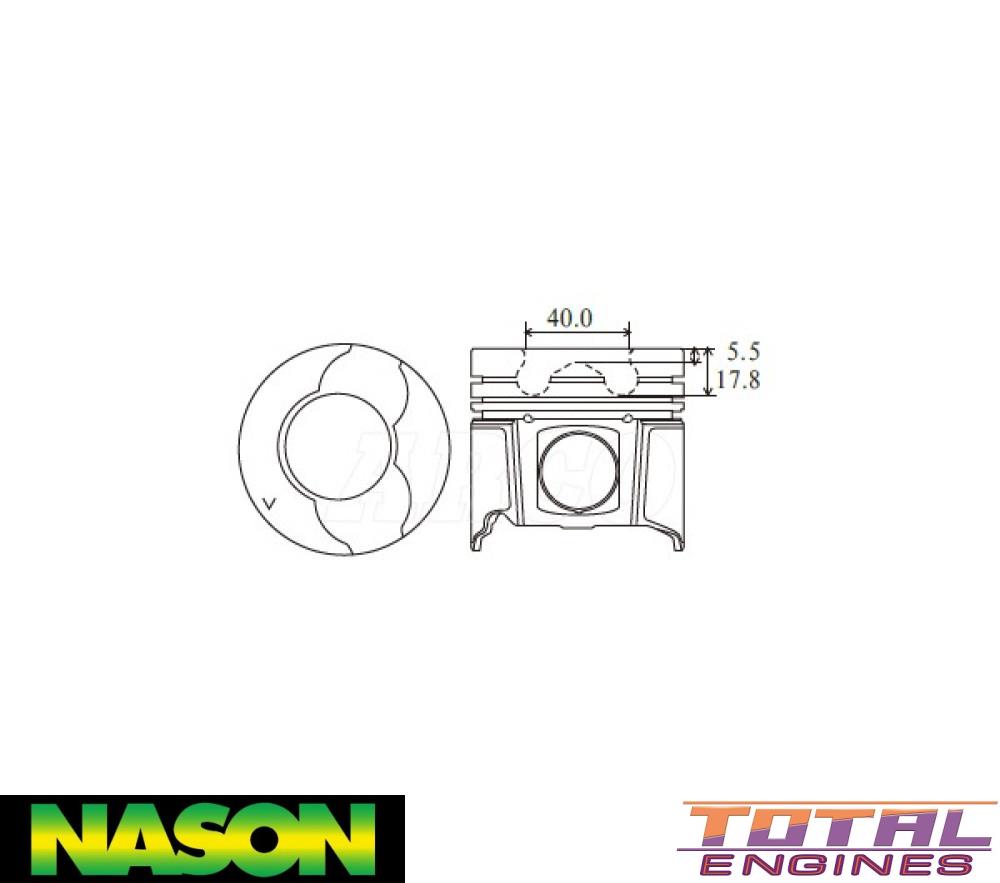

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	80.00mm
Head Type:	Dish top with two valve reliefs
Piston Type:	Cast
Length:	77.00mm
Comp Height:	47.00mm - 5.50mm -17.80mm
Combustion Bowl OD:	40.00mm
Pin Size:	28.00mm x 64.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm

This part will fit the following Vehicles:

Renault Trafic X83 (1.9 Litre 4 Cyl F9Q 870/2 SOHC 8v):

LWB High Roof L2H2 FWD Commercial Van 3 Door [04/2004 to 04/2007] 74KW With Manual Transmission
LWB L2H1 FWD Commercial Van 3 Door [04/2004 to 04/2007] 74KW With Manual Transmission
SWB L1H1 FWD Commercial Van 3 Door [04/2004 to 04/2007] 74KW With Manual Transmission
