Subaru >> DL >> (No Series) >> 1.6 Litre Boxer 4 EA71 OHV 8v >> A33 05/1976 - 12/1980 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Subaru DL A33 Sedan [05/1976 to 12/1980] (1.6L EA71 Boxer4 OHV CARB)

Part
Nason logo

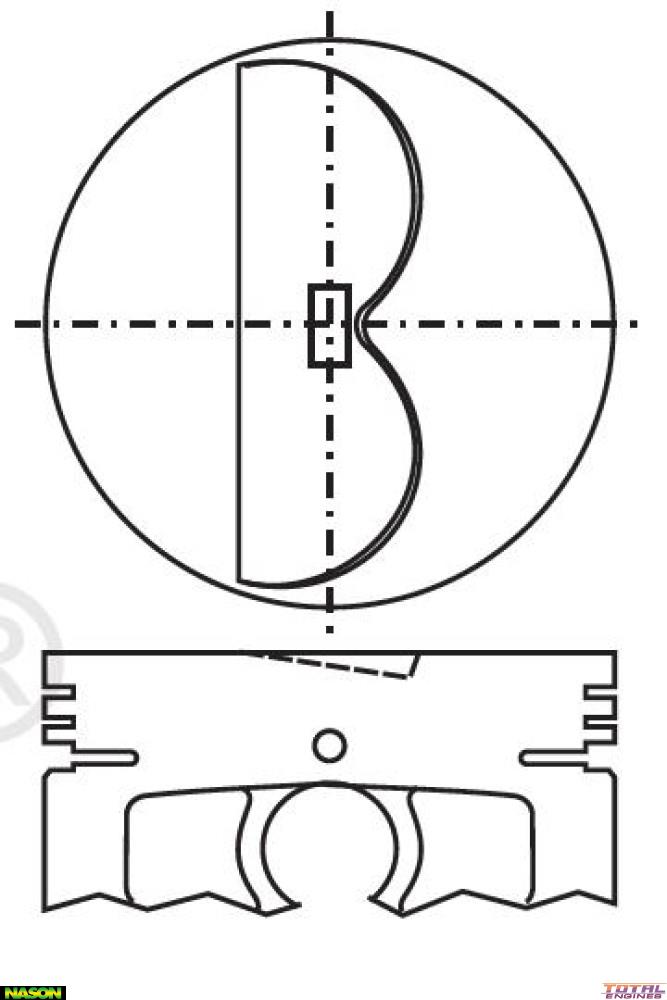

Nason Piston & pin set

Fitment Information:

Nason, 1.00mm Oversize

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2M5364 or 5364
Oil Ring Width: 4.00mm
2nd Ring Width: 2.00mm
Top Ring Width: 2.00mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 21.00mm x 70.00mm
Comp Height: 31.50mm
Length: 65.00mm
Piston Type: Cast
Head Type: Flat Top with 2 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 92.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Subaru DL (1.6 Litre Boxer 4 EA71 OHV 8v):
  • A33 FWD Sedan 4 Door [05/1976 to 12/1980] 64KW With Manual Transmission
  • A66 FWD Wagon 4 Door [05/1976 to 12/1978] 64KW With Manual Transmission
  • AM3 4WD Wagon 4 Door [05/1976 to 09/1980] 64KW With Auto or Manual Transmission
Subaru DL (1.8 Litre Boxer 4 EA81 OHV 8v):
  • AJ5 4WD Wagon 4 Door [01/1982 to 12/1985] 81KW With Auto or Manual Transmission
  • AM5 4WD Wagon 4 Door [10/1980 to 11/1984] 81KW With Auto or Manual Transmission
Subaru DL (1.8 Litre Boxer 4 EA82 SOHC 8v):
  • AN5 4WD Wagon 4 Door [12/1984 to 12/1995] 63KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
