Subaru >> Forester >> SG >> 2.5 Litre Boxer 4 EJ255 DOHC 16v >> XT SG9 07/2005 - 02/2008 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Subaru Forester SG XT SG9 Wagon [07/2005 to 02/2008] (2.5L EJ255 Boxer4 DOHC VVT Turbo MPFI)

Part
Nason logo

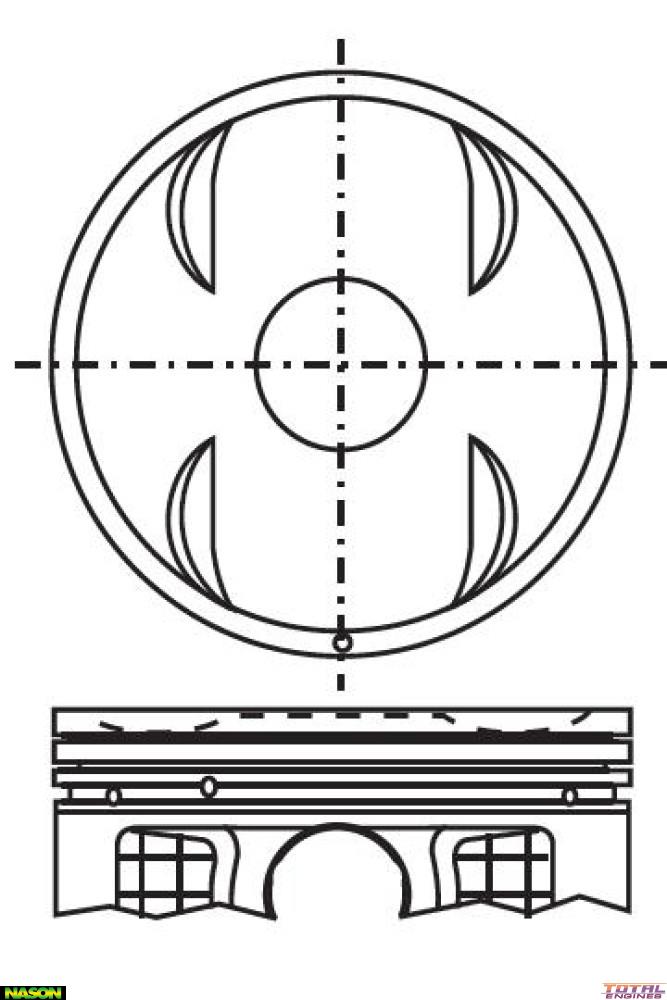

Nason Piston & pin set

Fitment Information:

Nason, STD Size Bowl Depth 1.70mm Deep

Out Of Stock

Specifications
Size: Bowl Depth 1.70mm Deep
Ring Set: 2C5219 Or SWF20068
Oil Ring Width: 2.00mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 23.00mm x 64.00mm
Comp Height: 30.70mm - 1.70mm
Length: 54.80mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: Std
Std Bore Size: 99.50mm
Piston Set: 4 x Piston & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Subaru Forester S12 (2.5 Litre Boxer 4 EJ255 DOHC 16v):
  • S-EDITION SH, SH9 AWD Wagon 4 Door [07/2010 to 11/2012] 193KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Subaru Forester SG (2.5 Litre Boxer 4 EJ255 DOHC 16v):
  • XT SG9 AWD Wagon 4 Door [08/2003 to 06/2005] 155KW With Auto or Manual Transmission
  • XT SG9 AWD Wagon 4 Door [07/2005 to 02/2008] 169KW With Auto or Manual Transmission
Subaru Forester SH (2.5 Litre Boxer 4 EJ255 DOHC 16v):
  • S-Edition SH9 AWD Wagon 4 Door [02/2011 to 01/2013] 193KW With Auto Transmission
  • XT SH9 AWD Wagon 4 Door [03/2008 to 01/2013] 169KW With Auto or Manual Transmission

Description

Nason, STD Size
