Subaru >> GL >> (No Series) >> 1.8 Litre Boxer 4 EA82 SOHC 8v >> AK5 12/1984 - 10/1990 4 Door Wagon >> Nason Piston & pin set

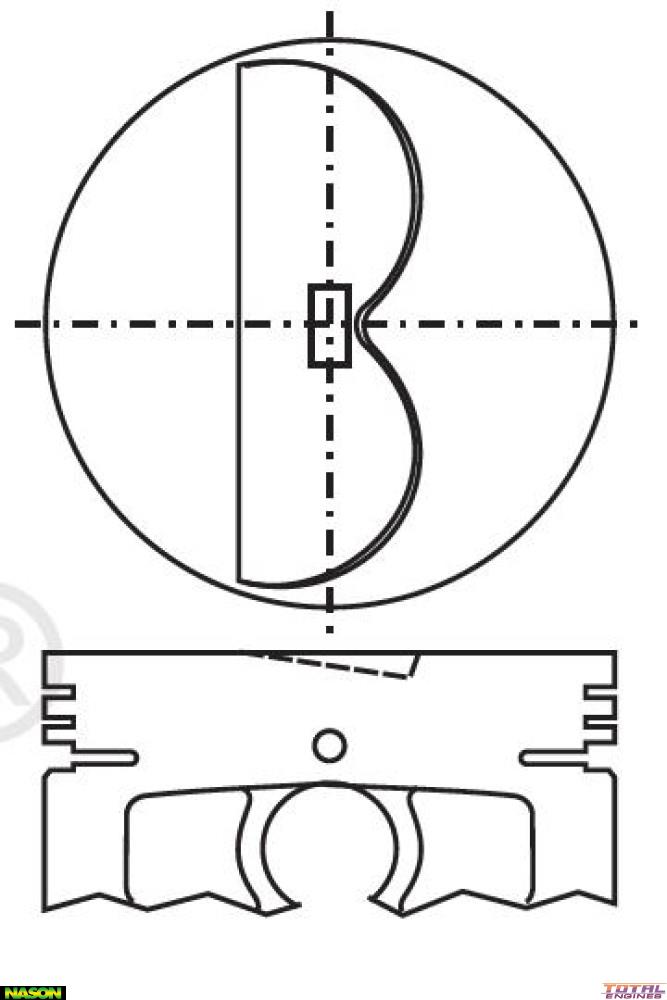

Nason Piston & pin set Fits Subaru GL AK5 Wagon [12/1984 to 10/1990] (1.8L EA82 Boxer4 SOHC CARB)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.00mm
Size: 0.50mm / .020"
Head Type: Flat Top with 2 Valve Reliefs
Piston Type: Cast
Length: 65.00mm
Comp Height: 31.50mm
Pin Size: 21.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2M5364 or 5364
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Subaru GL (1.6 Litre Boxer 4 EA71 OHV 8v):
  • AM3 FWD Coupe 2 Door [05/1976 to 12/1978] 64KW With Manual Transmission
Subaru GL (1.8 Litre Boxer 4 EA82 SOHC 8v):
  • AC5 4WD Sedan 4 Door [08/1985 to 08/1987] 66KW With Auto or Manual Transmission
  • AK5 4WD Wagon 4 Door [12/1984 to 10/1990] 63KW With Auto or Manual Transmission
  • AN4 FWD Wagon 4 Door [07/1986 to 12/1987] 61KW With Auto or Manual Transmission
  • AN5 4WD Wagon 4 Door [12/1984 to 12/1994] 63KW With Auto or Manual Transmission
  • AN5 4WD Wagon 4 Door [09/1988 to 06/1990] 70KW With Manual Transmission

Description

Nason, 0.50mm Oversize
