Mitsubishi >> Triton >> ML >> 3.2 Litre 4 Cyl 4M41-T DOHC 16v >> GLX, GLX-R/vr, GLS KB8 07/2006 - 07/2008 4 Door Wellside >> Nason Piston & pin set

Nason Piston & pin set Fits Mitsubishi Triton ML GLX, GLX-R/vr, GLS KB8 Wellside [07/2006 to 07/2008] (3.2L 4M41-T 4 Cyl DOHC I/C Turbo EFI)

Part
Nason logo

Nason Piston & pin set

Fitment Information:

Oversize 1.00mm - Pistons Only- Does not Include Rings - 50.5mm Combustion Bowl

Out Of Stock

Specifications
Piston Set: 4 x Pistons & Pins
Std Bore Size: 98.50mm
Size: 1.00mm / .040"
Head Type: Combustion Bowl & 4 Valve Reliefs
Piston Type: Cast
Length: 77.00mm
Comp Height: 49.00mm, -7.40mm, -19.00mm
Combustion Bowl OD: 50.50mm
Pin Size: 32.00mm x 80.00mm
Pin Type: Full Floating
Skirt Coating: Yes
Piston to Bore: See Label on Box
Top Ring Width: 2.30mm Half Keystone
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm
Ring Set: 33956-1.00
Size: Oversize 1.00mm
Size: 50.5mm Combustion Bowl

Alert WARNING! This part will NOT FIT the following Vehicles:

Mitsubishi Triton (No Series) (3.2 Litre 4 Cyl 4M41-T DOHC 16v):
  • KB8 4WD Wellside 4 Door [07/2006 to 07/2008] 118KW With Auto Transmission

Tick This part will fit the following Vehicles:

Mitsubishi Triton ML (3.2 Litre 4 Cyl 4M41-T DOHC 16v):
  • GLX KB8 4WD Cab Chassis 2 Door [07/2006 to 07/2008] 118KW With Manual Transmission
  • GLX KB8 4WD Cab Chassis 2 Door [05/2007 to 07/2008] 118KW With Auto or Manual Transmission
  • GLX KB8 4WD Cab Chassis 2 Door [07/2008 to 08/2009] 118KW With Manual Transmission
  • GLX KB8 4WD Cab Chassis 2 Door [07/2008 to 08/2009] 118KW With Auto Transmission
  • GLX, GLX-R, GLS KB8 4WD Wellside 4 Door [05/2007 to 07/2008] 118KW With Auto Transmission
  • GLX, GLX-R, GLS KB8 4WD Wellside 4 Door [07/2008 to 08/2009] 118KW With Auto Transmission
  • GLX, GLX-R/vr KB8 4WD Wellside 4 Door [07/2008 to 08/2009] 118KW With Manual Transmission
  • GLX, GLX-R/vr, GLS KB8 4WD Wellside 4 Door [07/2006 to 07/2008] 118KW With Manual Transmission

Description

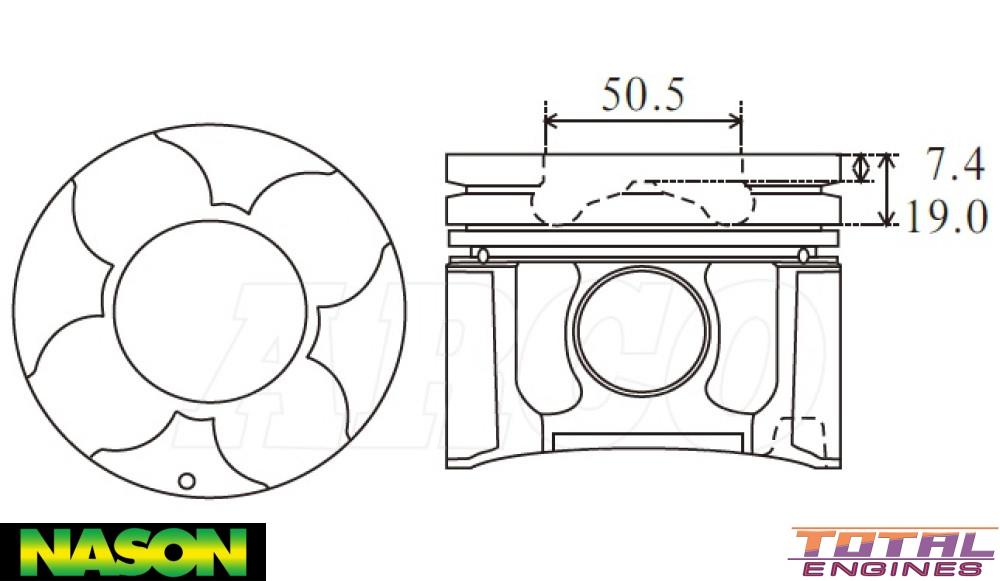

With 50.5mm Combustion Bowl, 49mm Comp Height

Alfin, With Oil Gallery Cooling
