Subaru >> Omega >> (No Series) >> 1.8 Litre Boxer 4 EA82 SOHC 8v >> AN5 01/1988 - 12/1993 4 Door Wagon >> Nason Piston & pin set

Nason Piston & pin set Fits Subaru Omega AN5 Wagon [01/1988 to 12/1993] (1.8L EA82 Boxer4 SOHC CARB)

Part
Nason logo

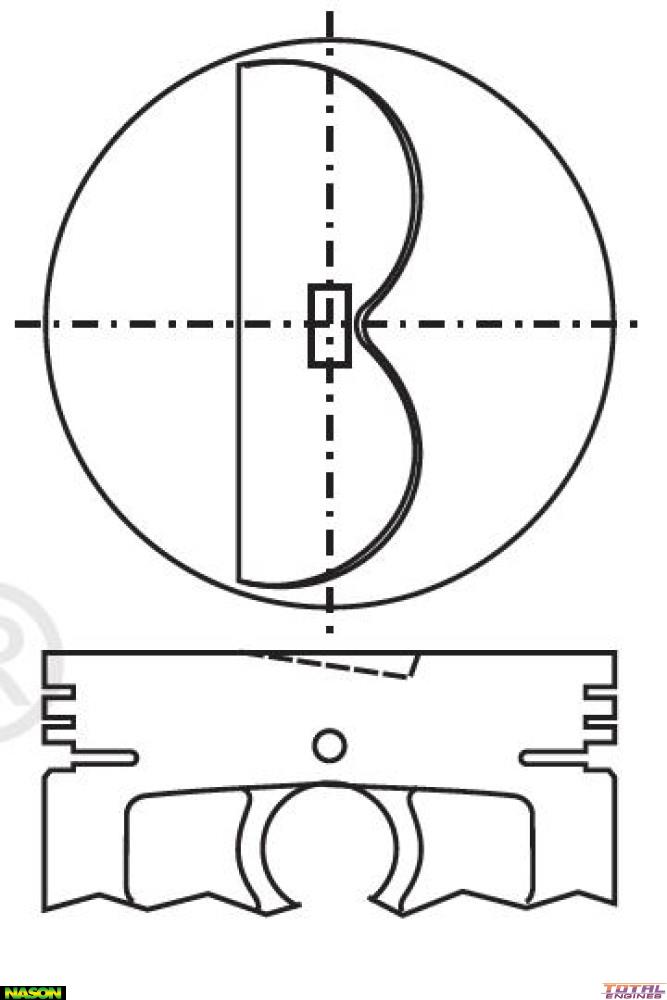

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 92.00mm
Size: 1.00mm / .040"
Head Type: Flat Top with 2 Valve Reliefs
Piston Type: Cast
Length: 65.00mm
Comp Height: 31.50mm
Pin Size: 21.00mm x 70.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 2.00mm
2nd Ring Width: 2.00mm
Oil Ring Width: 4.00mm
Ring Set: 2M5364 or 5364
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Subaru Omega (1.6 Litre Boxer 4 EA71 OHV 8v):
  • DL AC2 FWD Sedan 4 Door [01/1988 to 12/1992] With Manual Transmission
Subaru Omega (1.8 Litre Boxer 4 EA82 SOHC 8v):
  • AN5 4WD Wagon 4 Door [01/1988 to 12/1993] 70KW With Manual Transmission

Description

Nason, 1.00mm Oversize
