Suzuki >> Carry >> FD >> 1.3 Litre 4 Cyl G13BB SOHC 16v >> DA32T 10/2000 - 07/2005 2 Door Ute >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Carry FD DA32T Ute [10/2000 to 07/2005] (1.3L G13BB 4 Cyl SOHC EFI)

Part
Nason logo

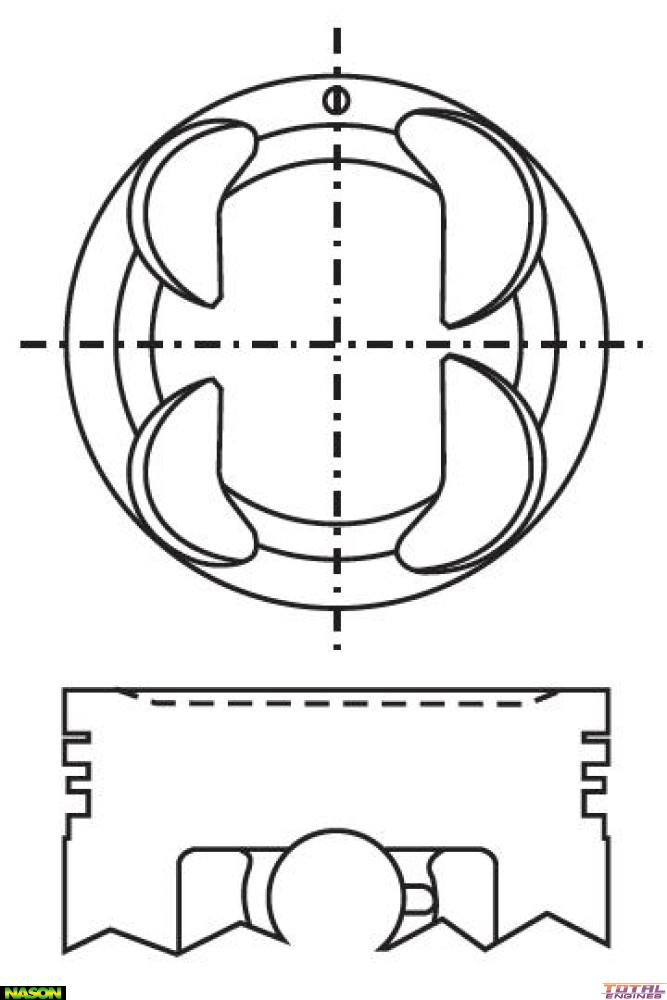

Nason Piston & pin set

Out Of Stock

Specifications
Ring Set: 2C4258
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 56.00mm
Comp Height: 29.00mm - 1.90mm
Length: 56.00mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: Std
Std Bore Size: 74.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Carry FD (1.3 Litre 4 Cyl G13BB SOHC 16v):
  • DA32T FWD Ute 2 Door [10/2000 to 07/2005] With Manual Transmission
  • DA32V 4WD Van 4 Door [03/1999 to 09/2004] With Manual Transmission
Suzuki Jimny SN413 (1.3 Litre 4 Cyl G13BB SOHC 16v):
  • JLX JB33C 4WD Softtop 2 Door [12/2000 to 09/2002] 59KW With Auto or Manual Transmission
  • JX, JLX JB33V 4WD SUV 2 Door [10/1998 to 10/2000] 59KW With Auto or Manual Transmission

Description

Nason, STD Size
