Suzuki >> Escudo >> (No Series) >> 1.6 Litre 4 Cyl G16A SOHC 16v >> Convertible TA01R 05/1988 - 07/1990 2 Door Softtop >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Suzuki Escudo Convertible TA01R Softtop [05/1988 to 07/1990] (1.6L G16A 4 Cyl SOHC SPFI)

Part
Nason logo

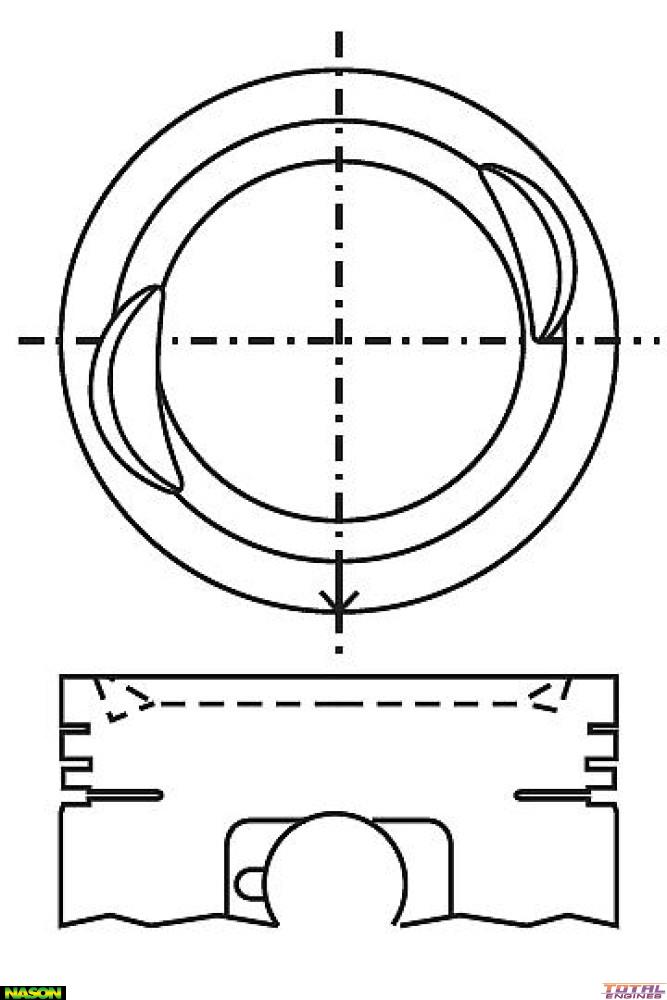

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C4640
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 61.50mm
Comp Height: 28.30mm - 3.30mm
Length: 58.30mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Alert WARNING! This part will NOT FIT the following Vehicles:

Suzuki Escudo (No Series) (1.6 Litre 4 Cyl G16A SOHC 16v):
  • CONVERTIBLE TA01R 4WD Soft Top 2 Door [08/1990 to 10/1997] 74KW With Auto or Manual Transmission

Tick This part will fit the following Vehicles:

Suzuki Escudo (1.6 Litre 4 Cyl G16A SOHC 16v):
  • Convertible TA01R 4WD Softtop 2 Door [05/1988 to 07/1990] 61KW With Auto or Manual Transmission
  • TA01W 4WD SUV 2 Door [05/1988 to 07/1990] 61KW With Auto or Manual Transmission

Description

Nason, STD Size
