Suzuki >> Grand Vitara >> I >> 1.6 Litre 4 Cyl G16B SOHC 16v >> TA03C 02/2000 - 09/2002 2 Door Softtop >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Grand Vitara I TA03C Softtop [02/2000 to 09/2002] (1.6L G16B 4 Cyl SOHC MPFI)

Part
Nason logo

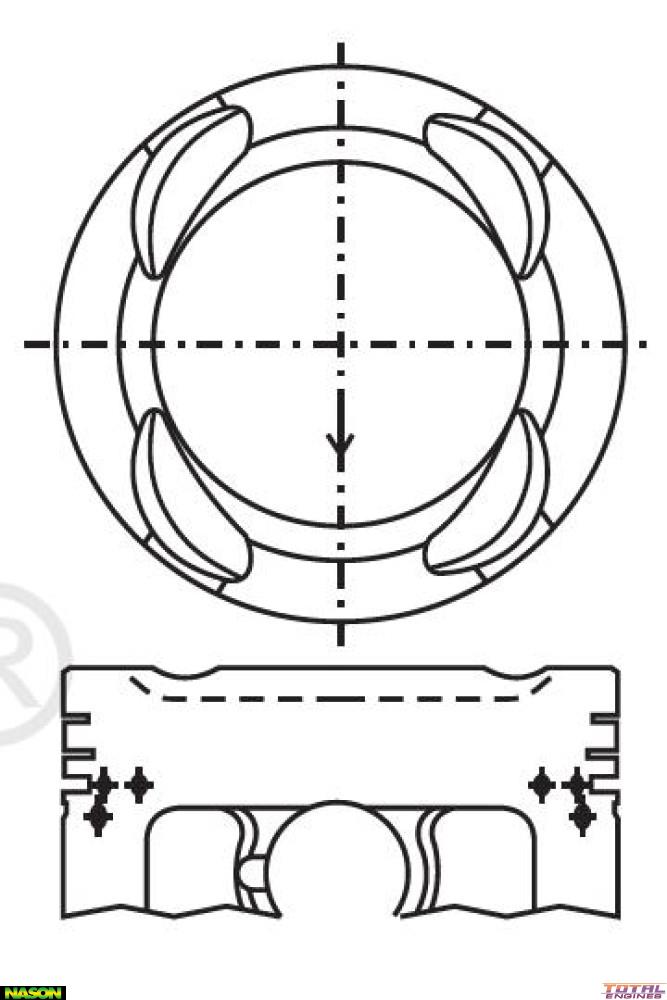

Nason Piston & pin set

$199.48

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.20mm
Comp Height: 28.20mm - 4.10mm
Pin Size: 19.00mm x 61.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4640
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Suzuki Grand Vitara I (1.6 Litre 4 Cyl G16B SOHC 16v):
  • TA03C 4WD Softtop 2 Door [02/2000 to 09/2002] 69KW With Auto or Manual Transmission
Suzuki Grand Vitara SQ416 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • TA03V 4WD SUV 2 Door [01/1998 to 12/2005] 69KW With Manual Transmission

Description

Nason, 0.50mm Oversize
