Nason Piston & ring set Fits Suzuki Grand Vitara JT TD44V SUV [09/2005 to 09/2014] (1.9L F9Q 4 Cyl SOHC Turbo CRD)

Name: Nason Piston & ring set Fits Suzuki Grand Vitara JT TD44V SUV [09/2005 to 09/2014] (1.9L F9Q 4 Cyl SOHC Turbo CRD)
Brand: Nason
SKU: TE1380756
Availability: OutOfStock

Nason Piston & ring set

Fitment Information:

Inc Rings - Nason, 0.50mm Oversize

Out Of Stock

Specifications
Piston Set:	4 x Pistons, Pins & Rings
Std Bore Size:	80.00mm
Size:	0.50mm/.020"

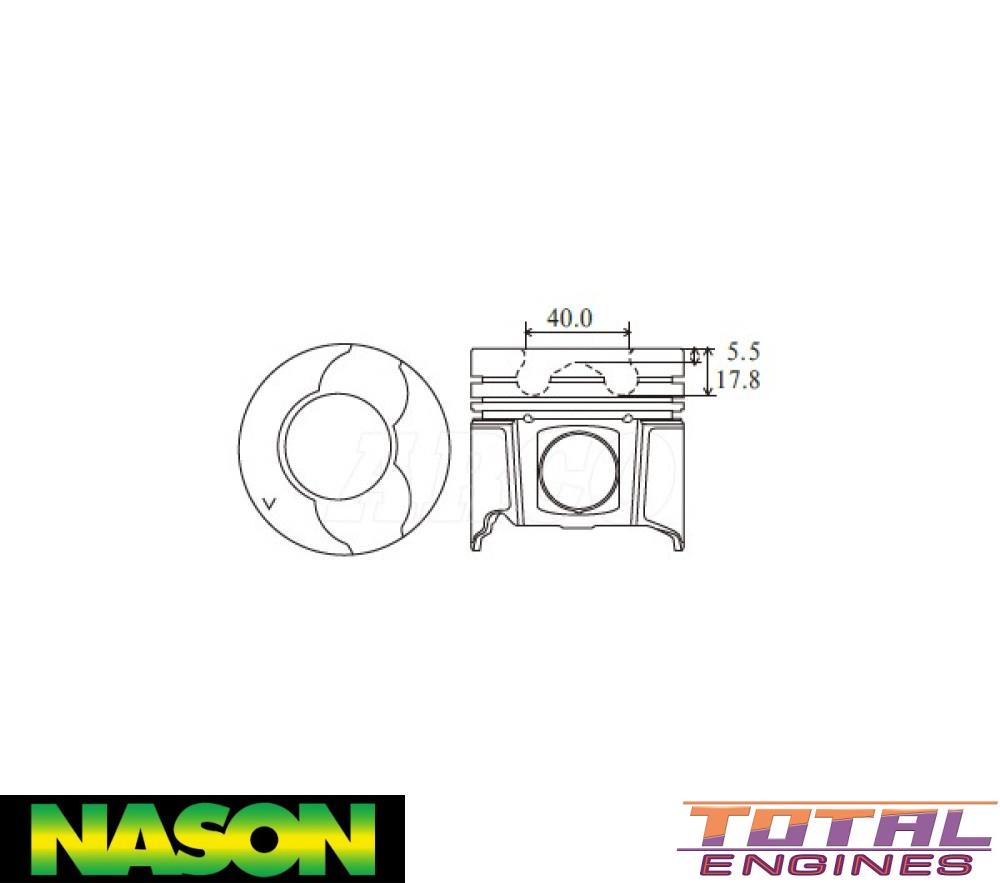

Head Type:	Dish top with two valve reliefs
Piston Type:	Cast
Length:	77.00mm
Comp Height:	47.00mm - 5.50mm -17.80mm
Combustion Bowl OD:	40.00mm
Pin Size:	28.00mm x 64.00mm
Pin Type:	Full Floating
Skirt Coating:	Yes
Piston to Bore:	See Label on Box
Top Ring Width:	2.50mm
2nd Ring Width:	2.00mm
Oil Ring Width:	3.00mm
Size:	0.50mm Oversize

This part will fit the following Vehicles:

Suzuki Grand Vitara JT (1.9 Litre 4 Cyl F9Q SOHC 8v):

TD44V 4WD SUV 4 Door [09/2005 to 09/2014] 95KW With Manual Transmission
