Suzuki >> Jimny >> SN413 >> 1.3 Litre 4 Cyl G13BB SOHC 16v >> JX, JLX JB33V 10/1998 - 10/2000 2 Door SUV >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Jimny SN413 JX, JLX JB33V SUV [10/1998 to 10/2000] (1.3L G13BB 4 Cyl SOHC EFI)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 74.00mm
Size: Std

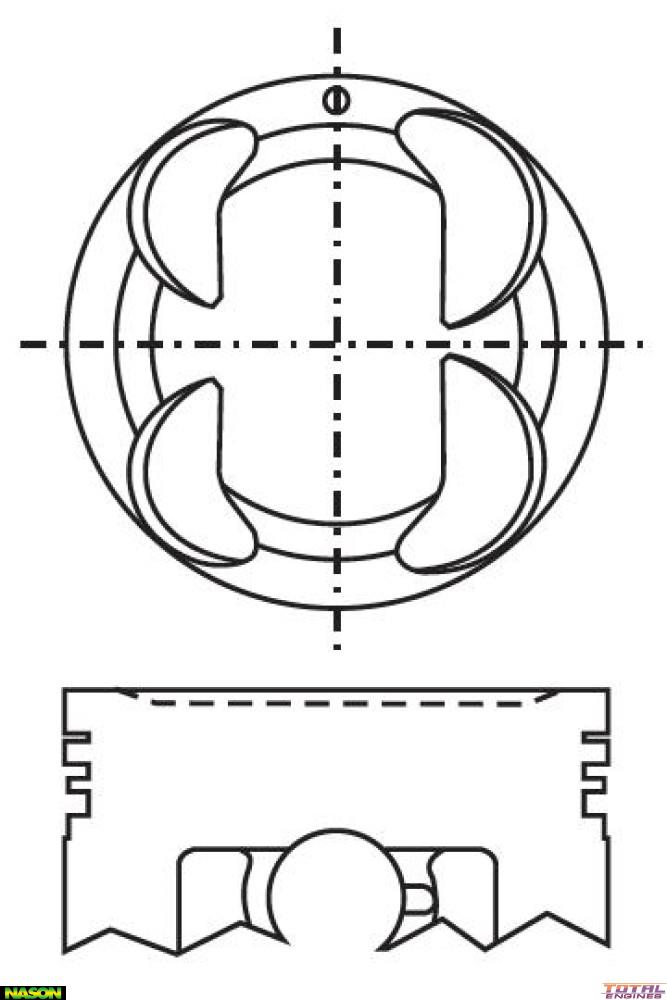

Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 56.00mm
Comp Height: 29.00mm - 1.90mm
Pin Size: 19.00mm x 56.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4258

Tick This part will fit the following Vehicles:

Suzuki Carry FD (1.3 Litre 4 Cyl G13BB SOHC 16v):
  • DA32T FWD Ute 2 Door [10/2000 to 07/2005] With Manual Transmission
  • DA32V 4WD Van 4 Door [03/1999 to 09/2004] With Manual Transmission
Suzuki Jimny SN413 (1.3 Litre 4 Cyl G13BB SOHC 16v):
  • JLX JB33C 4WD Softtop 2 Door [12/2000 to 09/2002] 59KW With Auto or Manual Transmission
  • JX, JLX JB33V 4WD SUV 2 Door [10/1998 to 10/2000] 59KW With Auto or Manual Transmission

Description

Nason, STD Size
