Suzuki >> ST80 >> (No Series) >> 0.8 Litre 4 Cyl F8A SOHC 8v >> ST80V 01/1978 - 12/1979 4 Door Commercial Van >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Suzuki ST80 ST80V Commercial Van [01/1978 to 12/1979] (0.8L F8A 4 Cyl SOHC CARB)

Part
Nason logo

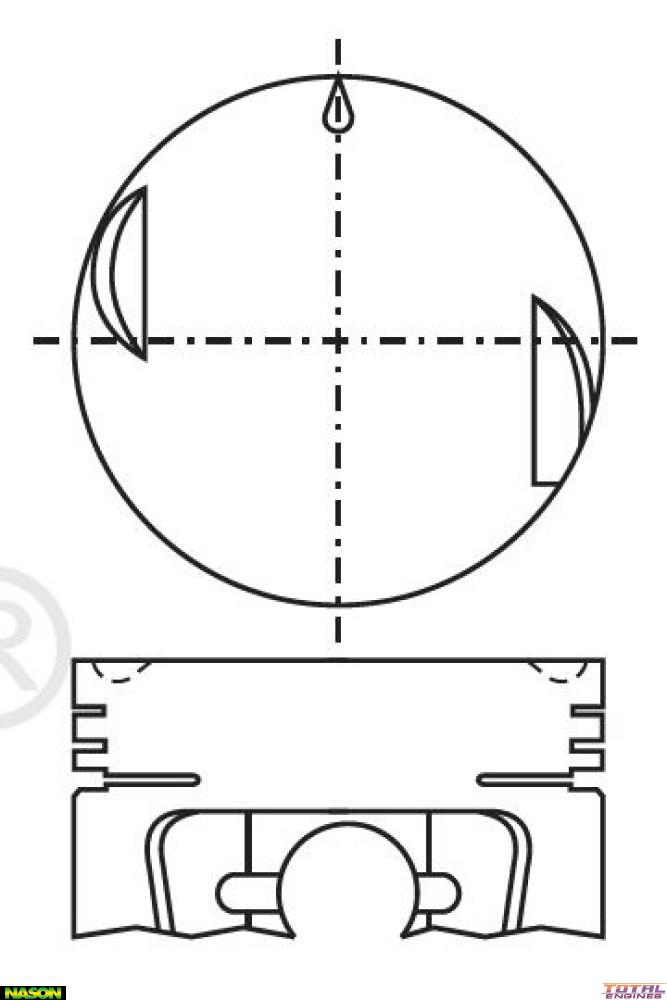

Nason Piston & Pin Set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 62.00mm
Size: 1.00mm / .040"
Head Type: Flat Top with 2 Vale Reliefs
Piston Type: Cast
Length: 57.50mm
Comp Height: 27.50mm
Pin Size: 16.00mm x 50.00mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4807 or 4807
Size: 1.00mm Oversize

Alert WARNING! This part will NOT FIT the following Vehicles:

Suzuki ST80 (No Series) (0.8 Litre 4 Cyl F8A SOHC 8v):
  • ST80K RWD Truck 2 Door [01/1978 to 12/1979] 28KW With Transmission

Tick This part will fit the following Vehicles:

Suzuki LJ80 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • LJ80 4WD SUV Convertible 2 Door [01/1978 to 12/1981] With Transmission
Suzuki LJ81 LJ81 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • LJ81 4WD Ute/Single Cab 2 Door [01/1979 to 12/1981] With Transmission
Suzuki Sierra LJ80 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • LJ80 RWD Commercial Van 2 Door [01/1978 to 12/1981] With Transmission
  • LJ81 RWD Commercial Van 2 Door [01/1978 to 12/1981] With Transmission
Suzuki ST10 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • ST10S RWD Truck 2 Door [01/1976 to 12/1977] 28KW With Transmission
Suzuki ST20 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • ST20K RWD Truck 2 Door [01/1977 to 12/1978] 28KW With Transmission
Suzuki ST80 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • ST80V RWD Commercial Van 4 Door [01/1978 to 12/1979] 28KW With Transmission
Suzuki ST90 (0.8 Litre 4 Cyl F8A SOHC 8v):
  • ST90 RWD Commercial Van 4 Door [01/1979 to 12/1985] 27KW With Transmission

Description

Nason, 1.00mm Oversize
