Suzuki >> Sierra >> SJ410 >> 1.3 Litre 4 Cyl G13A SOHC 8v >> SJ50 10/1984 - 07/1989 2 Door Hardtop >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Suzuki Sierra SJ410 SJ50 Hardtop [10/1984 to 07/1989] (1.3L G13A 4 Cyl SOHC CARB)

Part
Nason logo

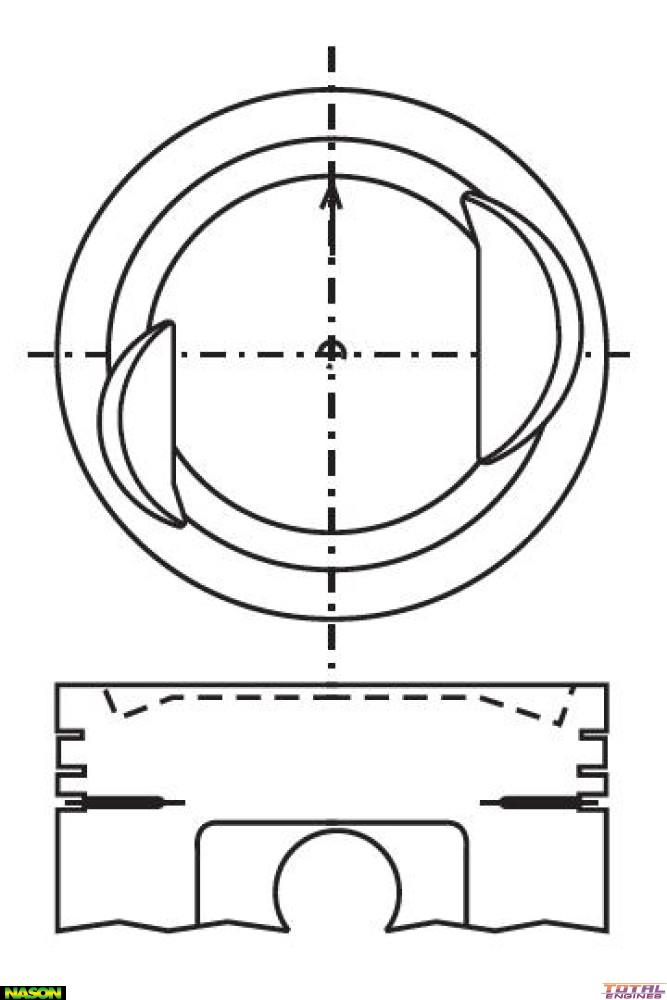

Nason Piston & Pin Set

$196.27

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 74.00mm
Size: 1.00mm / .040"
Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 55.40mm
Comp Height: 28.40mm - 1.30mm
Pin Size: 17.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4258
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Suzuki Sierra SJ410 (1.3 Litre 4 Cyl G13A SOHC 8v):
  • SJ50 4WD Hardtop 2 Door [10/1984 to 07/1989] With Manual Transmission
Suzuki Sierra SJ413 (1.3 Litre 4 Cyl G13A SOHC 8v):
  • SJ50V 4WD Van 2 Door [01/1985 to 01/1990] With Manual Transmission
  • SJ51T 4WD Ute 2 Door [10/1984 to 07/1988] With Manual Transmission

Description

Nason Piston & Pin Set 1.00 Oversize

Unlock the full potential of your engine with the Nason Piston & Pin Set 1.00 Oversize, an essential upgrade for your Suzuki Swift. Designed with precision and performance in mind, this piston and pin set delivers exceptional durability and reliability, ensuring that your vehicle runs smoothly and efficiently.

Key Features:

  • Brand: Nason
  • Category: Cylinder Block
  • Piston Set includes: 4 x Piston & Pins
  • Oversize: 1.00mm / .040\"
  • Standard Bore Size: 74.00mm
  • Piston Type: Quality Cast for strength and performance
  • Head Type: Dish Top featuring 2 Valve Reliefs for optimal airflow
  • Length: 55.40mm with a Compression Height of 28.40mm (-1.30mm)
  • Pin Size: 17.00mm x 62.00mm, designed for a secure Press Fit

This Nason Piston & Pin Set is engineered to meet the needs of select Suzuki Swift models:

Compatibility:

  • Fits:
  • Suzuki Swift AA41V 1.3L [01/1986 to 12/1988]
  • Suzuki Swift SA413 1.3L G13A 8v SOHC CARB AA51V
  • Suzuki Swift SA413 1.3L G13A 8v SOHC CARB GC AB51S 50kw
  • Suzuki Swift SA413 1.3L G13A 8v SOHC CARB GL AA51S 50kw

WARNING! This product will NOT FIT the following Vehicles:

  • Suzuki Swift AA41V 1.0L [03/1984 to 12/1985]
  • Suzuki Swift SA413 1.3L G13B 16v DOHC EFI GTi AA33S 74kw

Specifications:

  • Pin Type: Press Fit for optimal performance
  • Skirt Coating: No
  • Piston to Bore: Refer to label on box for precise details
  • Ring Set: 2C4258
  • Ring Widths:
  • Top Ring: 1.20mm
  • 2nd Ring: 1.50mm
  • Oil Ring: 2.80mm

Whether you're upgrading your existing engine or performing a complete rebuild, the Nason Piston & Pin Set 1.00 Oversize is the perfect solution to help you achieve the performance you desire. Don't compromise on quality—choose Nason for unparalleled engine longevity and power. Order your set today and take the first step towards optimal engine performance!
