Suzuki >> Swift >> AA41V >> 1.3 Litre 4 Cyl G13A SOHC 8v >> AB53S 01/1986 - 12/1988 4 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Swift AA41V AB53S Hatchback [01/1986 to 12/1988] (1.3L G13A 4 Cyl SOHC CARB)

Part
Nason logo

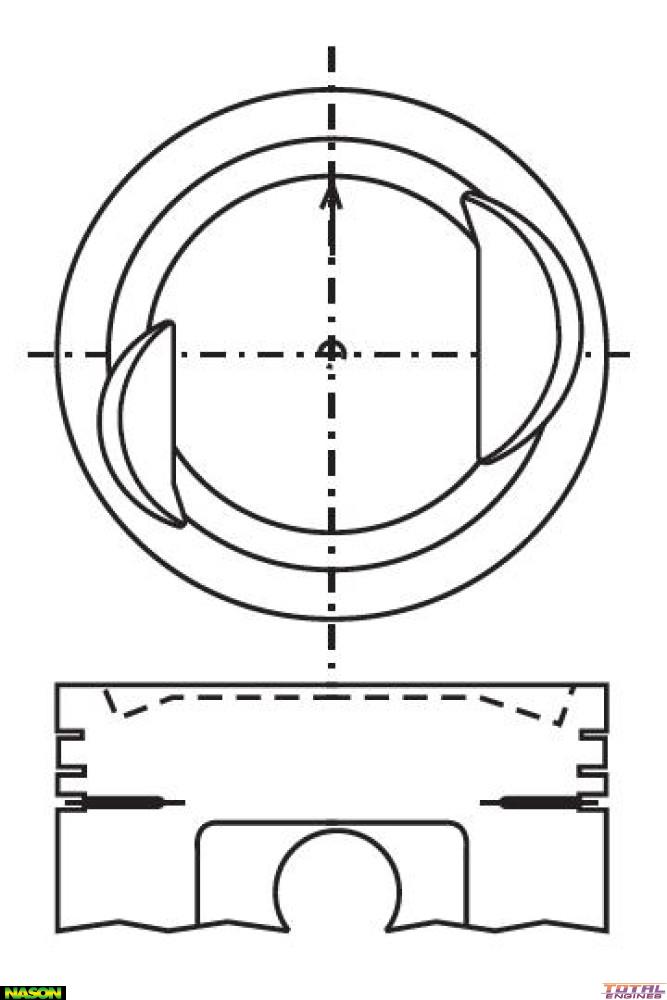

Nason Piston & pin set

$196.27

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4258
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Press Fit
Pin Size: 17.00mm x 62.00mm
Comp Height: 28.40mm - 1.30mm
Length: 55.40mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 74.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Swift AA41V (1.3 Litre 4 Cyl G13A SOHC 8v):
  • AB53S FWD Hatchback 4 Door [01/1986 to 12/1988]
Suzuki Swift SA413 (1.3 Litre 4 Cyl G13A SOHC 8v):
  • AA51V FWD Van 2 Door [03/1984 to 12/1984] With Manual Transmission
  • GC AB51S FWD Hatchback 4 Door [01/1985 to 12/1989] 50KW With Manual Transmission
  • GL AA51S FWD Hatchback 2 Door [01/1985 to 03/1987] 50KW With Manual Transmission

Description

Nason, 1.00mm Oversize
