Suzuki >> Swift >> EZ >> 1.5 Litre 4 Cyl M15A DOHC 16v >> ZC21S 11/2004 - 01/2011 4 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Suzuki Swift EZ ZC21S Hatchback [11/2004 to 01/2011] (1.5L M15A 4 Cyl DOHC VVT MPFI)

Part
Nason logo

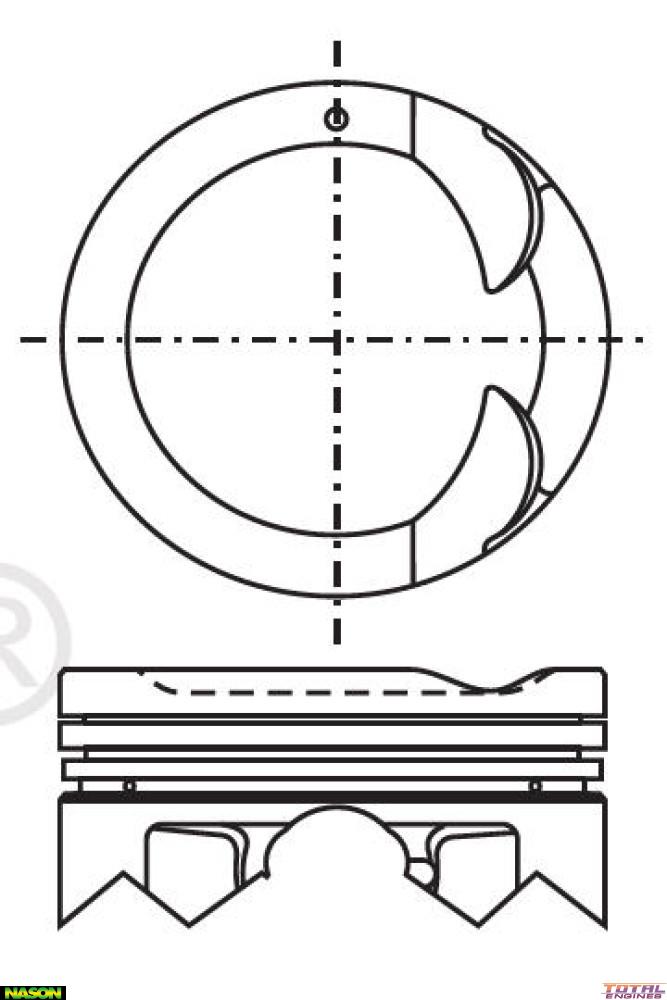

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C4186
Oil Ring Width: 2.50mm
2nd Ring Width: 1.20mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: Yes
Pin Type: Full Floating
Pin Size: 20.00mm x 57.50mm
Comp Height: 30.00mm - 3.10mm
Length: 59.50mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Std Bore Size: 78.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Swift EZ (1.5 Litre 4 Cyl M15A DOHC 16v):
  • ZC21S FWD Hatchback 4 Door [11/2004 to 01/2011] 74KW With Auto or Manual Transmission

Description

Nason, STD Size
