Suzuki >> Swift >> SA310 >> 1.0 Litre 3 Cyl G10 SOHC 6v >> GA, GL AA41S 01/1985 - 12/1986 2 Door Hatchback >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Suzuki Swift SA310 GA, GL AA41S Hatchback [01/1985 to 12/1986] (1.0L G10 3 Cyl SOHC CARB)

Part
Nason logo

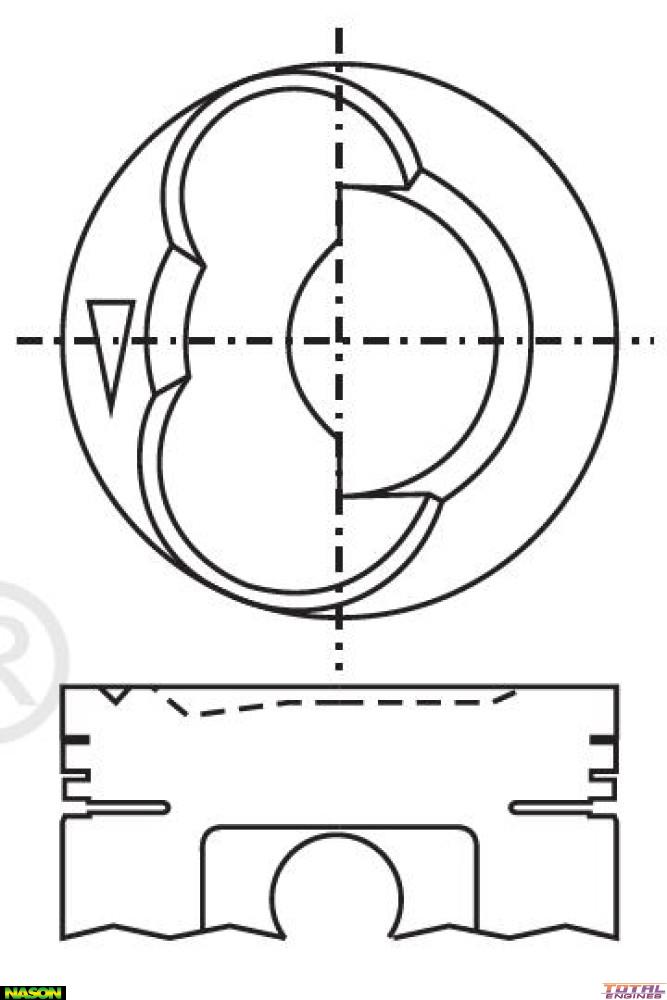

Nason Piston & Pin Set

$90.90

Specifications
Piston Set: 3 x Piston & Pins
Std Bore Size: 74.00mm
Size: 0.50mm / .020"
Head Type: Dish Top 2 Valve Reliefs
Piston Type: Cast
Length: 55.70mm
Comp Height: 28.70mm - 3.70mm
Pin Size: 17.00mm X 65.00mm
9in Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4258
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Suzuki Cultus (1.0 Litre 3 Cyl G10 SOHC 6v):
  • AB41S FWD Hatchback 4 Door [11/1984 to 06/1986]
Suzuki Swift AA41V (1.0 Litre 3 Cyl G10 SOHC 6v):
  • GL FWD Van 2 Door [03/1984 to 01/1985] 37KW With Manual Transmission
Suzuki Swift SA310 (1.0 Litre 3 Cyl G10 SOHC 6v):
  • GA, GL AA41S FWD Hatchback 2 Door [01/1985 to 12/1986] 39KW With Auto or Manual Transmission
  • GA, GL AA43S FWD Hatchback 2 Door [01/1986 to 03/1987] 39KW With Auto or Manual Transmission
Suzuki Swift SF310 (1.0 Litre 3 Cyl G10 SOHC 6v):
  • GA, GL AA44S FWD Hatchback 2 Door [07/1989 to 05/1995] 39KW With Auto or Manual Transmission

Description

Nason Piston & Pin Set - 0.50 Oversize

Revitalize your engine with the Nason Piston & Pin Set, designed for exceptional performance and reliability in your vehicle. This set is engineered with precision to offer the perfect fit for select Suzuki models, ensuring enhanced power and efficiency.

Product Features:

  • Brand: Nason
  • Category: Cylinder Block
  • Piston Set Includes: 3 x Pistons & Pins
  • Standard Bore Size: 74.00mm
  • Oversized Dimension: 0.50mm / .020\"
  • Head Type: Dish Top with 2 Valve Reliefs
  • Piston Type: Durable Cast
  • Length: 55.70mm
  • Compression Height: 28.70mm - 3.70mm
  • Pin Size: 17.00mm x 65.00mm
  • Pin Type: Press Fit
  • Skirt Coating: None
  • Piston to Bore Requirements: Refer to Label on Box
  • Ring Widths:
  • Top Ring: 1.20mm
  • 2nd Ring: 1.50mm
  • Oil Ring: 2.80mm
  • Ring Set: 2C4258
  • Oversize: 0.50mm

Vehicle Compatibility:

Will NOT fit: Suzuki Swift AA41V 1.3L [02/1985 Onwards]

Fits the following models:

  • Suzuki Cultus 1.0L
  • Suzuki Swift AA41V 1.0L [03/1984 to 01/1985]
  • Suzuki Swift SA310 1.0L
  • Suzuki Swift SF310 1.0L

Why Choose Nason?

Nason is renowned for manufacturing high-quality components that enhance engine performance. Each piston in this set is crafted with precision, ensuring a perfect match and optimal performance in your engine. Improve your vehicle's power output and efficiency with the Nason Piston & Pin Set, designed specifically for select Suzuki models.
