Suzuki >> Swift >> SA413 >> 1.3 Litre 4 Cyl G13A SOHC 8v >> GL AA51S 01/1985 - 03/1987 2 Door Hatchback >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Swift SA413 GL AA51S Hatchback [01/1985 to 03/1987] (1.3L G13A 4 Cyl SOHC CARB)

Part
Nason logo

Nason Piston & pin set

$196.27

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 74.00mm
Size: 1.00mm / .040"

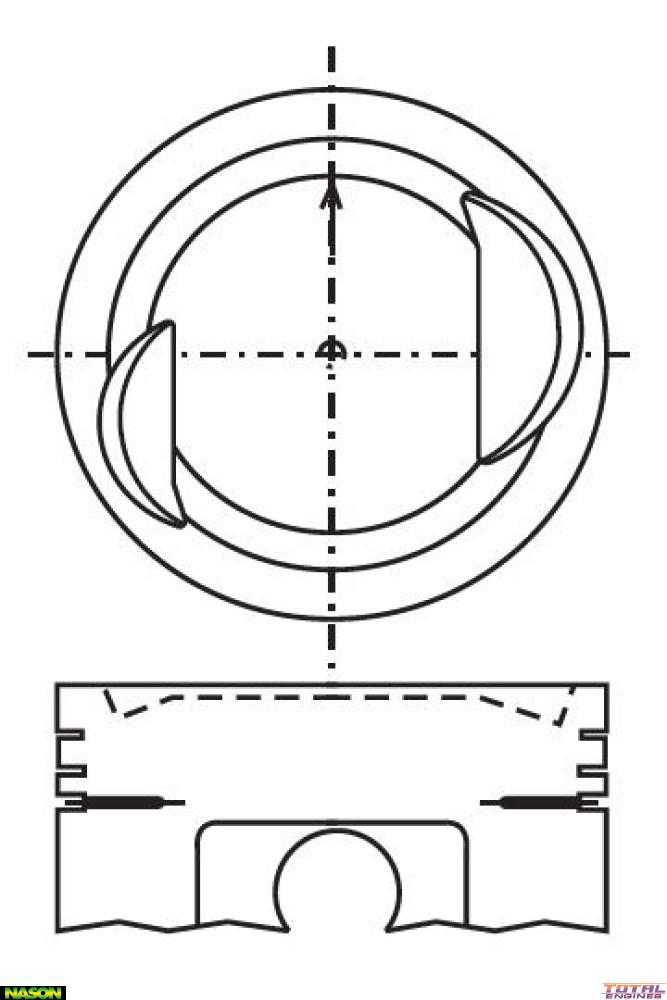

Head Type: Dish Top with 2 Valve Reliefs
Piston Type: Cast
Length: 55.40mm
Comp Height: 28.40mm - 1.30mm
Pin Size: 17.00mm x 62.00mm
Pin Type: Press Fit
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4258
Size: 1.00mm Oversize

Tick This part will fit the following Vehicles:

Suzuki Swift AA41V (1.3 Litre 4 Cyl G13A SOHC 8v):
  • AB53S FWD Hatchback 4 Door [01/1986 to 12/1988]
Suzuki Swift SA413 (1.3 Litre 4 Cyl G13A SOHC 8v):
  • AA51V FWD Van 2 Door [03/1984 to 12/1984] With Manual Transmission
  • GC AB51S FWD Hatchback 4 Door [01/1985 to 12/1989] 50KW With Manual Transmission
  • GL AA51S FWD Hatchback 2 Door [01/1985 to 03/1987] 50KW With Manual Transmission

Description

Nason, 1.00mm Oversize
