Suzuki >> Swift >> SF310 >> 1.6 Litre 4 Cyl G16B SOHC 16v >> Full Time AJ14S 01/1990 - 12/1991 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Swift SF310 Full Time AJ14S Sedan [01/1990 to 12/1991] (1.6L G16B 4 Cyl SOHC MPFI)

Part
Nason logo

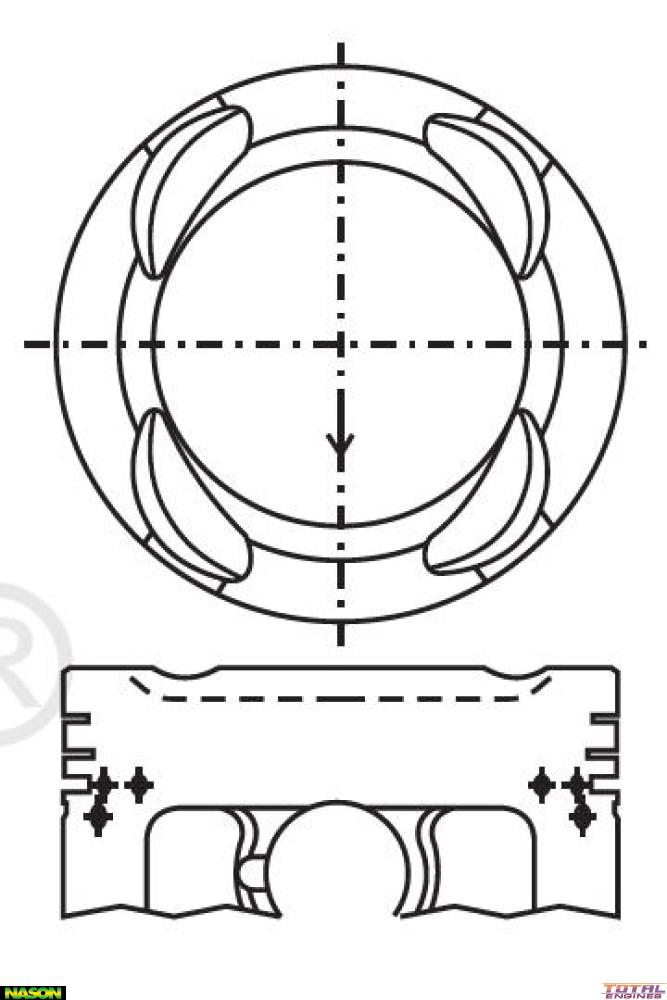

Nason Piston & pin set

$199.48

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: 0.50mm / .020"
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.20mm
Comp Height: 28.20mm - 4.10mm
Pin Size: 19.00mm x 61.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4640
Size: 0.50mm Oversize

Tick This part will fit the following Vehicles:

Suzuki Swift SF310 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • Full Time AJ14S 4WD Sedan 4 Door [01/1990 to 12/1991] 70KW With Manual Transmission
  • GLX AH14S FWD Sedan 4 Door [10/1989 to 05/1995] 70KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
