Suzuki >> Swift >> SF310 >> 1.6 Litre 4 Cyl G16B SOHC 16v >> GLX AH14S 10/1989 - 05/1995 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Swift SF310 GLX AH14S Sedan [10/1989 to 05/1995] (1.6L G16B 4 Cyl SOHC MPFI)

Part
Nason logo

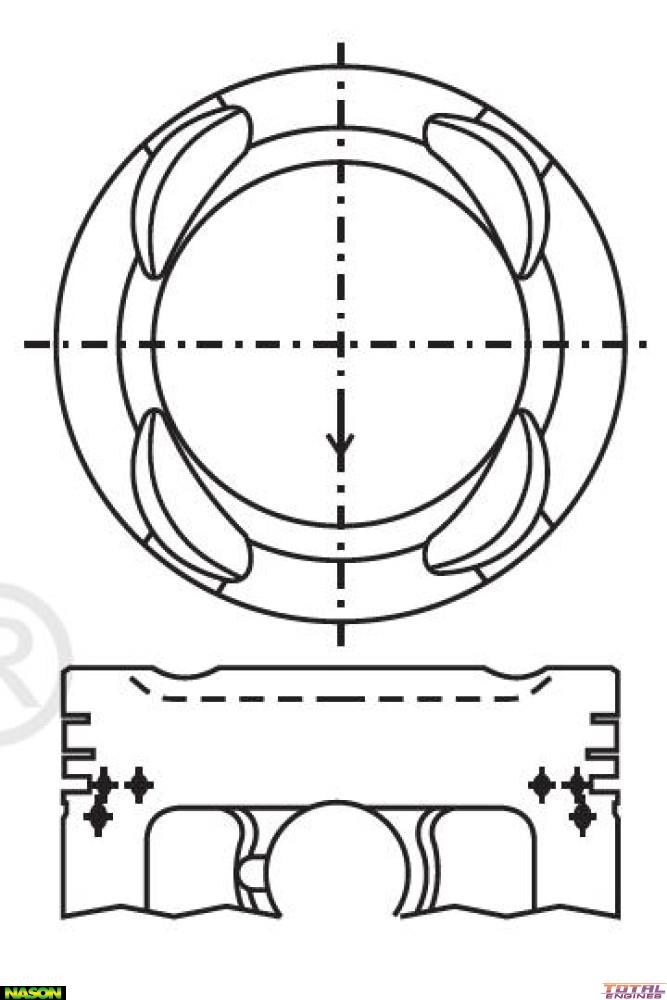

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4640
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 61.50mm
Comp Height: 28.20mm - 4.10mm
Length: 55.20mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Swift SF310 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • Full Time AJ14S 4WD Sedan 4 Door [01/1990 to 12/1991] 70KW With Manual Transmission
  • GLX AH14S FWD Sedan 4 Door [10/1989 to 05/1995] 70KW With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
