Suzuki >> Swift >> SF416 >> 1.6 Litre 4 Cyl G16A SOHC 16v >> AH14S 01/1989 - 12/1994 4 Door Sedan >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Swift SF416 AH14S Sedan [01/1989 to 12/1994] (1.6L G16A 4 Cyl SOHC SPFI)

Part
Nason logo

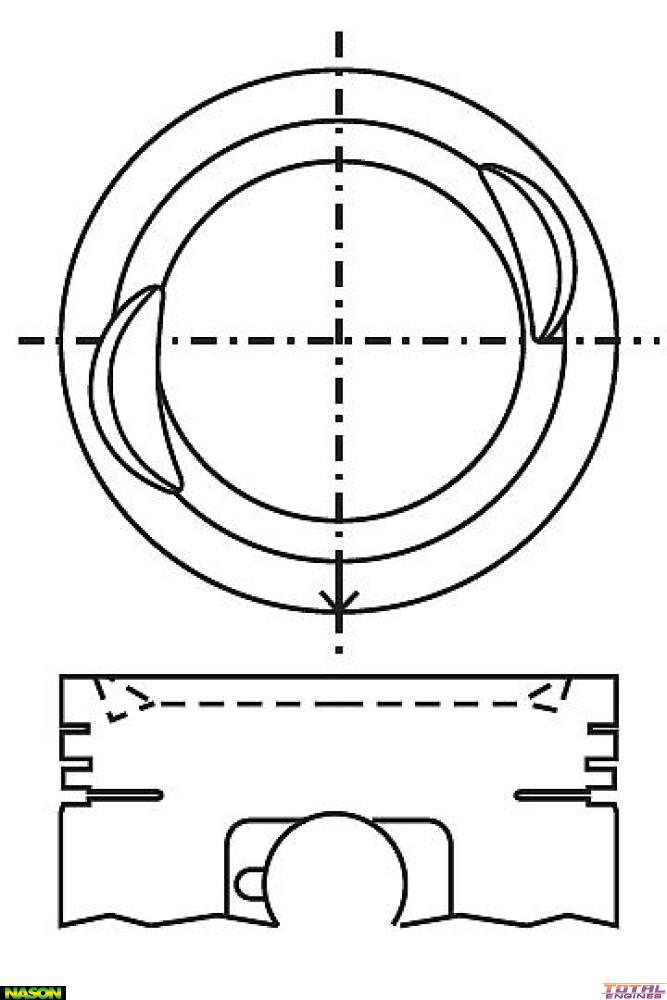

Nason Piston & pin set

Out Of Stock

Specifications
Size: 1.00mm Oversize
Ring Set: 2C4640
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 61.50mm
Comp Height: 28.30mm - 3.30mm
Length: 58.30mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 1.00mm / .040"
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Swift SF416 (1.6 Litre 4 Cyl G16A SOHC 16v):
  • AH14S FWD Sedan 4 Door [01/1989 to 12/1994] With Auto or Manual Transmission

Description

Nason, 1.00mm Oversize
