Suzuki >> Vitara >> SE416 >> 1.6 Litre 4 Cyl G16A SOHC 16v >> TA01C 07/1988 - 11/1994 2 Door Softtop >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Vitara SE416 TA01C Softtop [07/1988 to 11/1994] (1.6L G16A 4 Cyl SOHC SPFI)

Part
Nason logo

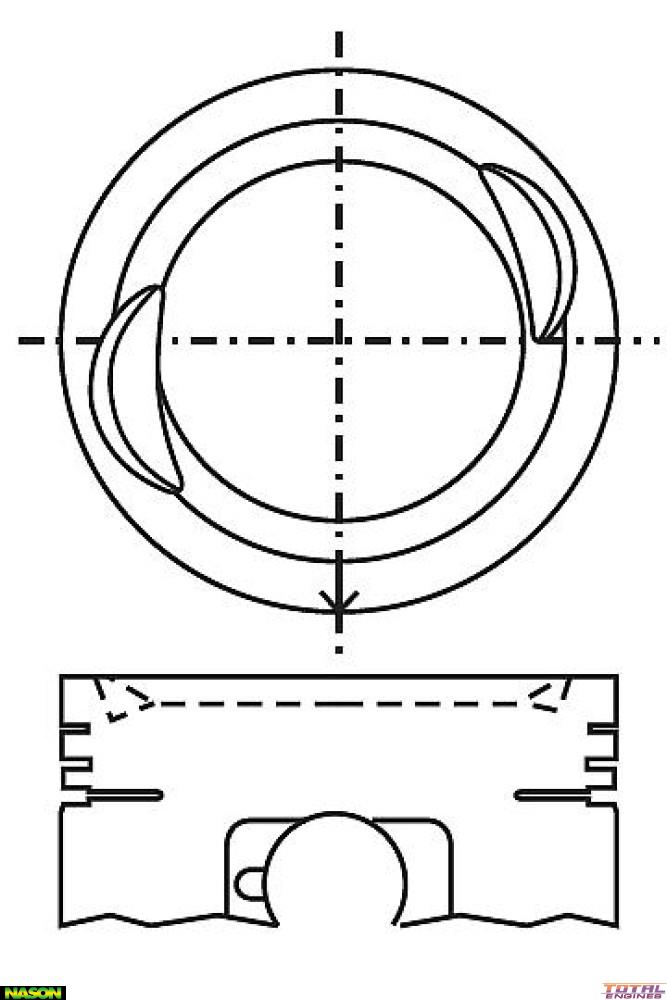

Nason Piston & pin set

Out Of Stock

Specifications
Size: 0.50mm Oversize
Ring Set: 2C4640
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 61.50mm
Comp Height: 28.30mm - 3.30mm
Length: 58.30mm
Piston Type: Cast
Head Type: Dish Top with 2 Valve Reliefs
Size: 0.50mm / .020"
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Vitara SE416 (1.6 Litre 4 Cyl G16A SOHC 16v):
  • TA01C 4WD Softtop 2 Door [07/1988 to 11/1994] 55KW With Auto or Manual Transmission
  • TA01V 4WD Hardtop 2 Door [07/1988 to 11/1994] 55KW With Auto or Manual Transmission

Description

Nason, 0.50mm Oversize
