Suzuki >> Vitara >> SE416 >> 1.6 Litre 4 Cyl G16B SOHC 16v >> TA02C 12/1994 - 04/2000 2 Door Softtop >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki Vitara SE416 TA02C Softtop [12/1994 to 04/2000] (1.6L G16B 4 Cyl SOHC MPFI)

Part
Nason logo

Nason Piston & pin set

Out Of Stock

Specifications
Ring Set: 2C4640
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 61.50mm
Comp Height: 28.20mm - 4.10mm
Length: 55.20mm
Piston Type: Cast

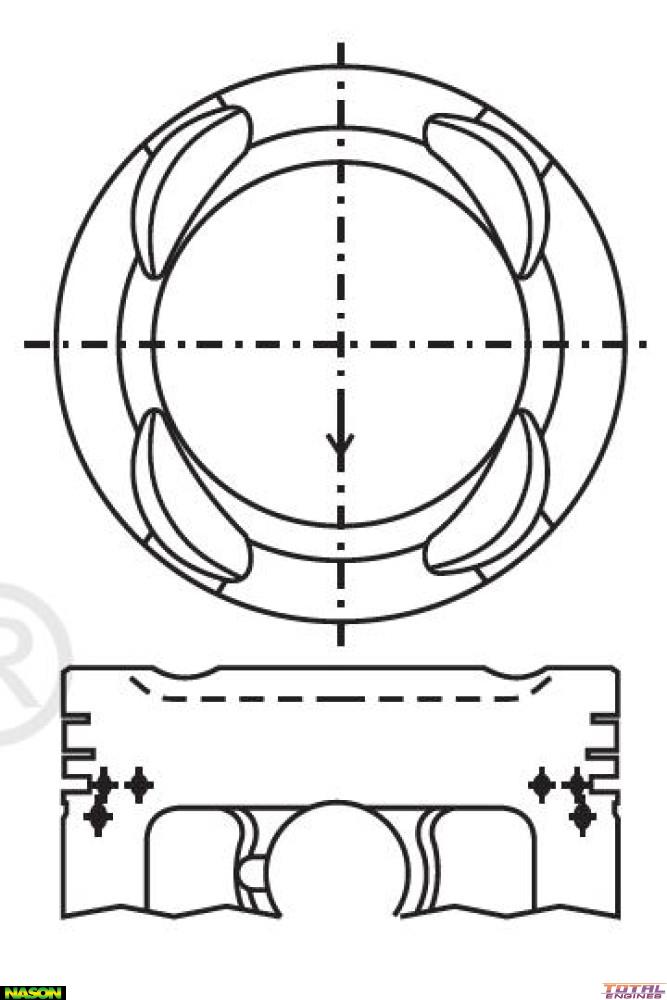

Head Type: Dish Top with 4 Valve Reliefs
Size: Std
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Vitara SE416 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • TA02C 4WD Softtop 2 Door [12/1994 to 04/2000] 71KW With Auto or Manual Transmission
  • TA02V 4WD Hardtop 2 Door [12/1994 to 04/2000] 71KW With Auto or Manual Transmission
  • TD01V 4WD SUV 4 Door [08/1991 to 12/1998] 71KW With Auto or Manual Transmission

Description

Nason, STD Size
