Suzuki >> X-90 >> (No Series) >> 1.6 Litre 4 Cyl G16B SOHC 16v >> LB11S 01/1995 - 12/1998 2 Door Coupe >> Nason Piston & Pin Set

Nason Piston & Pin Set Fits Suzuki X-90 LB11S Coupe [01/1995 to 12/1998] (1.6L G16B 4 Cyl SOHC EFI)

Part
Nason logo

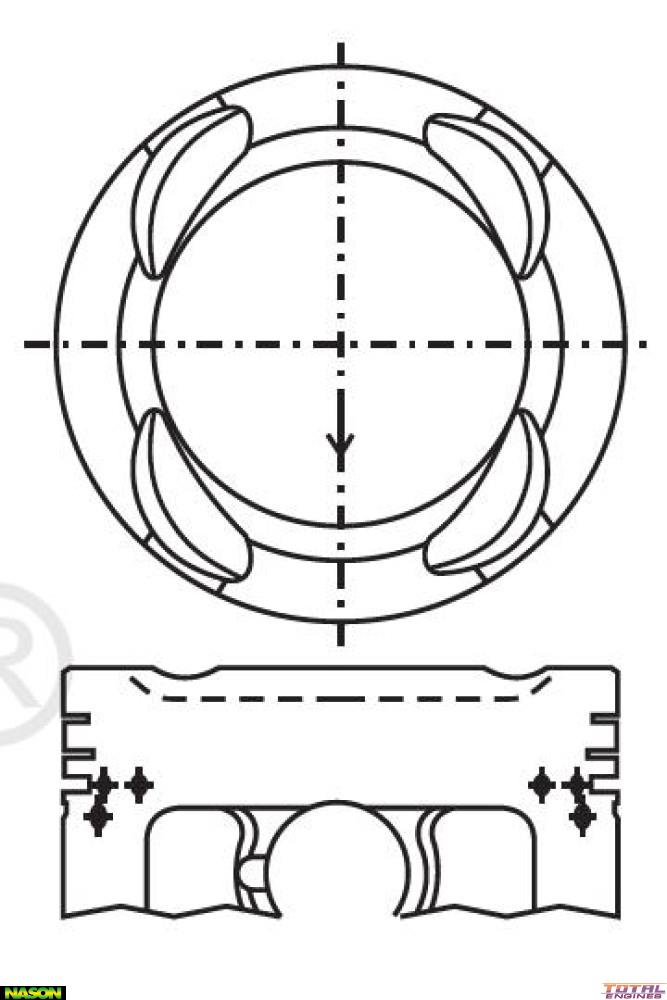

Nason Piston & Pin Set

Out Of Stock

Specifications
Ring Set: 2C4640
Oil Ring Width: 2.80mm
2nd Ring Width: 1.50mm
Top Ring Width: 1.20mm
Piston to Bore: See Label on Box
Skirt Coating: No
Pin Type: Full Floating
Pin Size: 19.00mm x 61.50mm
Comp Height: 28.20mm - 4.10mm
Length: 55.20mm
Piston Type: Cast
Head Type: Dish Top with 4 Valve Reliefs
Std Bore Size: 75.00mm
Piston Set: 4 x Piston & Pins

Tick This part will fit the following Vehicles:

Suzuki Grand Vitara SQ416 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • TA03V 4WD SUV Compact 2 Door [01/1998 to 12/2005] 69KW With Manual Transmission
Suzuki Swift SF310 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • Full Time AJ14S 4WD Sedan 4 Door [01/1990 to 12/1991] 70KW With Manual Transmission
  • GLX AH14S FWD Sedan 4 Door [10/1989 to 05/1995] 70KW With Auto or Manual Transmission
Suzuki X-90 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • LB11S AWD Coupe 2 Door [01/1995 to 12/1998] 70KW With Auto or Manual Transmission

Description

Nason, STD Size
