Suzuki >> X-90 >> (No Series) >> 1.6 Litre 4 Cyl G16B SOHC 16v >> LB11S 01/1995 - 12/1998 2 Door Coupe >> Nason Piston & pin set

Nason Piston & pin set Fits Suzuki X-90 LB11S Coupe [01/1995 to 12/1998] (1.6L G16B 4 Cyl SOHC MPFI)

Part
Nason logo

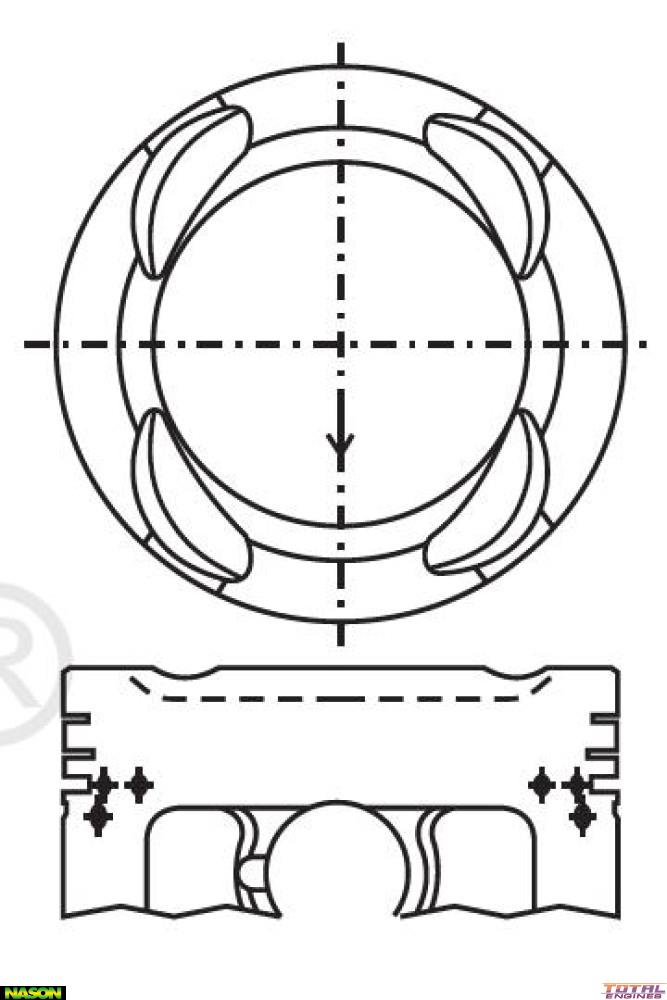

Nason Piston & pin set

Out Of Stock

Specifications
Piston Set: 4 x Piston & Pins
Std Bore Size: 75.00mm
Size: Std
Head Type: Dish Top with 4 Valve Reliefs
Piston Type: Cast
Length: 55.20mm
Comp Height: 28.20mm - 4.10mm
Pin Size: 19.00mm x 61.50mm
Pin Type: Full Floating
Skirt Coating: No
Piston to Bore: See Label on Box
Top Ring Width: 1.20mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.80mm
Ring Set: 2C4640

Tick This part will fit the following Vehicles:

Suzuki X-90 (1.6 Litre 4 Cyl G16B SOHC 16v):
  • LB11S AWD Coupe 2 Door [01/1995 to 12/1998] 70KW With Auto or Manual Transmission

Description

Nason, STD Size
